LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY

LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY
LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY

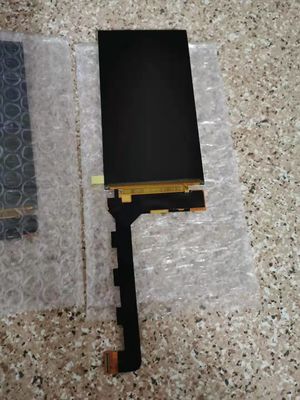

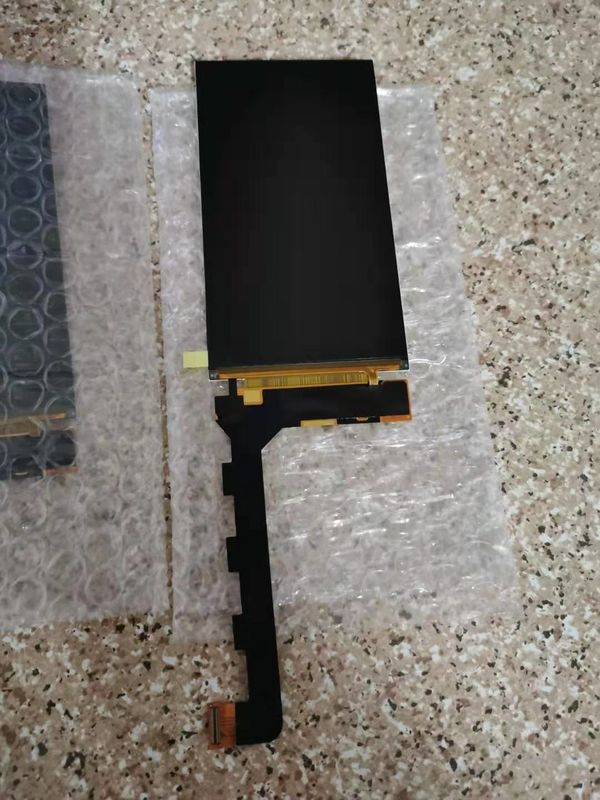

Large Image :  LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LS050T1SX04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 160 pcs / box 8.0 Kgs 580×365×187 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 20000PCS
Contact Now

LS050T1SX04 Sharp 5" 1080×1920RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Description
Model: LS050T1SX04 Size: 5.0 Inch
Pixel Format: 1080(RGB)×1920 Light Source: WLED [6S2P] , 5K Hours , W/O Driver
Outline Dim.: 64.3(H)×118.2(V) ×1.53(D) Mm Frame Rate: 60Hz
Power Supply: 1.8/5.0/-5.0V (Typ.)(IOVDD/AVDD+/AVDD-) Environment: Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
Highlight:

CCFL LVDS Industrial LCD Panel

,

QVGA Sharp TFT LCD Display

LS050 Series LS050T1SX04 LS050T1SX01 LS050T1SX18 LS050T1SX12(G) LS050T1SX06



Sharp LS050T1SX04 Application Details

Basic Detail :
Manufacturer
SHARP
LS050T1SX04Model Name
Panel Type
CG-Silicon , LCM
Another Name
-
Panel Size
5.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 60 °C
ST Temperature
-30 ~ 70 °C
RoHS

-Vibration Level



Sharp LS050T1SX04 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
35 (Max.)(Tr+Td) ms
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Operating Mode
New Mode2, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.320
Support Color
16.7M (8-bit)
Color Temperature
6737K
White Variation
1.11/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Sharp LS050T1SX04 Mechanical Details

Pixel Features :
Number of Pixel
1080(RGB)×1920, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0191×0.0573 mm
Pixel Pitch(W×H)
0.0573×0.0573 mm [443PPI]
Physical Size :
Active Viewing
61.884(W)×110.016(H) mm
Overall Dim.
64.3(W)×118.2(H) mm
Bezel Opening
-
Overall Depth
1.43±0.1 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
9:16
Shape Style

Other Detail :
Mass
21.5g (Typ.)
Surface
Hard coating (3H)



Sharp LS050T1SX04 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in R63311



Sharp LS050T1SX04 Interface Detail

Signal Electrical :
Input Current
17.1/11.8/-5.4mA (Typ.)(IOIDD/AIDD+/AIDD-)
Input Voltage
1.8/5.0/-5.0V (Typ.)(IOVDD/AVDD+/AVDD-)
Consumption
-
Signal Interface
MIPI (4 data lanes)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.3 mm
31 pins
1 pcs




Sharp LS050T1SX04 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
6S2P
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
5K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
18.0/19.8V (Typ./Max.)
Input Current
20mA (Typ.)
Consumption
720mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



Sharp LS050T1SX04 Packing Details

Package Box : Amount Size (L×W×H) Weight
160 pcs / box 8.0 Kgs 580×365×187 mm
