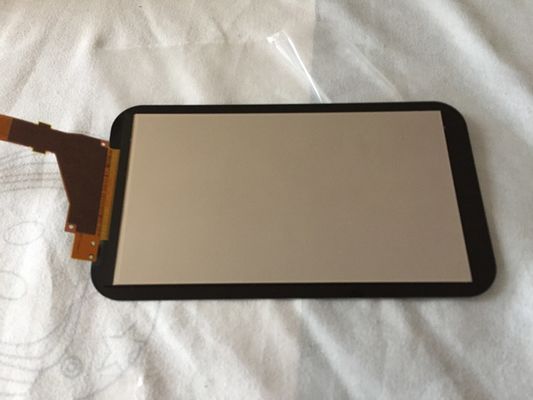

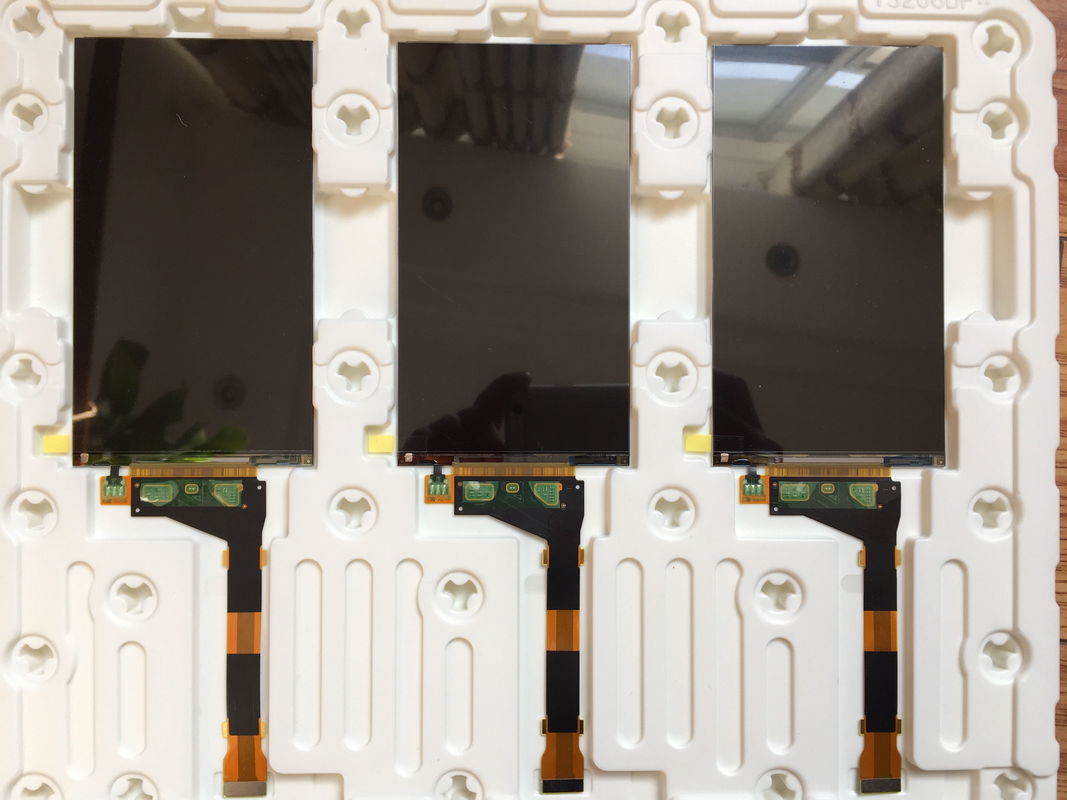

Product Details:
|
| Resolution: | 1080(RGB)×1920 | Brightness: | 480 Cd/m² (Typ.) |
|---|---|---|---|
| Size: | 5.0" | Lamp Type: | 6S2P WLED , Without Driver |
| Frequency: | 60Hz | Viewing Angle: | 85/85/85/85 (Min.)(CR≥10) Left / Right / Up / Down |
| Panel Type: | CG-Silicon, LCM | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Input Voltage: | 1.8/5.0/-5.0V (Typ.)(IOVDD/VSP/VSN) | Model: | LS050T1SX06 |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS050 Series LS050T1SX06 LS050T1SX04 LS050T1SX01 LS050T1SX18 LS050T1SX12(G)

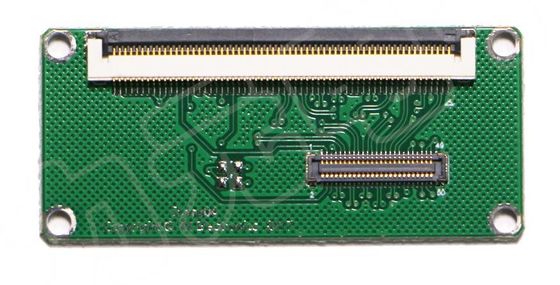

| Basic Detail : | Manufacturer | SHARP | Model Name | LS050T1SX06 |
|---|---|---|---|---|
| Panel Type | CG-Silicon , LCM | Another Name | - | |
| Panel Size | 5.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Vibration Level | - | RoHS |
| Pixel Features : | Number of Pixel | 1080(RGB)×1920 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0191×0.0573 mm | Pixel Pitch(W×H) | 0.0573×0.0573 mm [443PPI] | |
| Physical Size : | Active Viewing | 61.884(W)×110.016(H) mm | Overall Dim. | 64.3(W)×116.6(H) mm |
| Bezel Opening | - | Overall Depth | 1.4±0.1 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 9:16 | Shape Style | ||
| Other Detail : | Mass | 21.4g (Typ.) | Surface | - |
| Signal Electrical : | Input Current | 16.8/14.3/9.6mA (Typ.)(IDD/ISP/ISN) | Input Voltage | 1.8/5.0/-5.0V (Typ.)(IOVDD/VSP/VSN) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | BM20B(0.8)-34DP-0.4V | 1 pcs | 0.4 mm | 34 pins | ||
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S2P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 18.0/19.8V (Typ./Max.) | ||
| Consumption | 720mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | Built-in R63311 |
| Basic Information : | Luminance | 480 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 35 (Max.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) | Operating Mode | New Mode2, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6737K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 97% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 120 pcs / box | 575×360×225 mm | 8.5 Kgs |
LS050T1SX06 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 443 PPI. As for mechanical detail, it features active area of 61.884(W)×110.016(H) mm, outline size of 64.3(W)×116.6(H)×1.5(D) mm, net weight of 21.4g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS050T1SX06 can provides 480 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC).
