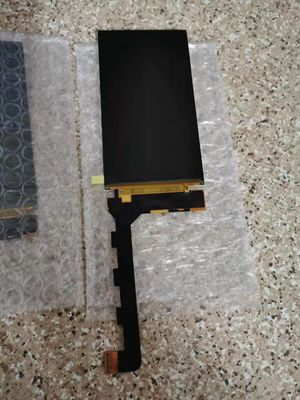

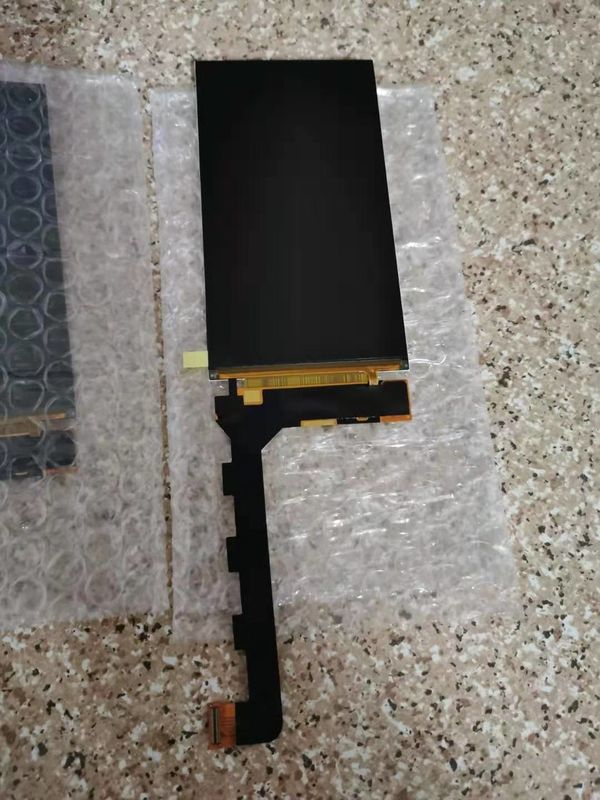

Product Details:
|
| Panel Size: | 5.0" | Brightness: | 480 Cd/m² (Typ.) |
|---|---|---|---|
| Panel Model: | LS050T1SX18 | Resolution: | 1080(RGB)×1920, FHD, 445PPI |
| Panel Weight: | 14.0g (Typ.) | Lamp Type: | 6S2P WLED , Without Driver |
| Input Voltage: | 1.8/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE) | Operating Temp: | -20 ~ 60 °C |
| Highlight: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||
LS050 Series LS050T1SX18 LS050T1SX12(G) LS050T1SX06 LS050T1SX04 LS050T1SX01
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS050T1SX18 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Driver IC : | COG Built-in NT35596 |
| Panel Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1080(RGB)×1920 [FHD] | RGB Vertical Stripe | 0.057075×0.057075 [445PPI] | 0.019025×0.057075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 61.641(H) × 109.584(V) | - | 63.64(H) × 116.224(V) | 1.06±0.1 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| With touch controller | - | I²C | PCAP | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 14.0g (Typ.) | - | - | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 480 (Typ.) | 80/80/80/80 (Min.)(CR≥10) | 35 (Max.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | New Mode2, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 96% | 100% | 84% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 94% | 71% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE) | 20.4/10.9/-6.6mA (Typ.)(IDDIO/AIDD/AIEE) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | WP7B-S040VA1 | 0.4 mm | 40 pins | 1 pcs | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S2P | 2 strings | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 20mA (Typ.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 120 pcs / box | - | 360×575×225 mm (L×W×H) |
