Product Details:
|

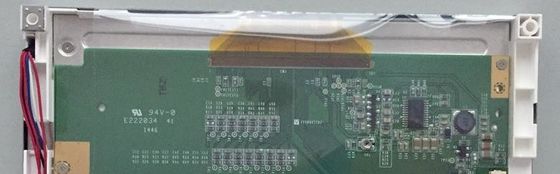

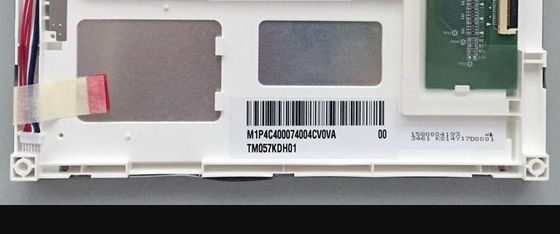

| MODEL NUMBER: | TM057KDH01-00 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320(RGB)×240 (QVGA) 70PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) |
| SIGNAL LNTERFACE: | LVDS | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | WLED Backlight Tianma TFT,WQVGA TIANMA LCD Panel |
||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 70/70/70/60 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 5814K | 262K (6-bit) | X:0.324; Y:0.362 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 73% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM057KDH01-00 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 85 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Remarks : | lamp wire length: 80mm | |||
| Panel Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.360×0.360 [70PPI] | 0.120×0.360 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 115.2(H) × 86.4(V) | 118.2(H) × 89.4(V) | 144(H) × 104.6(V) | 12.8 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 160g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 5S3P | 3 strings | 50K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 14.85/18.15V (Min./Max.) | 25mA (Typ.) | 1.238W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SHLP-06V-S-B | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-AAACCC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 145/225mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020B | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | 9.396 Kgs | 530×350×250 mm (L×W×H) |
