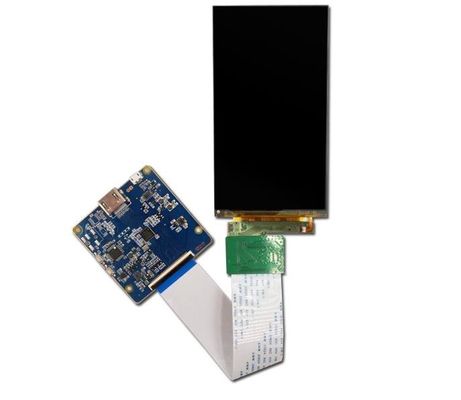

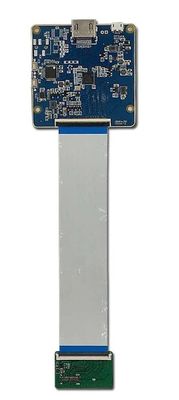

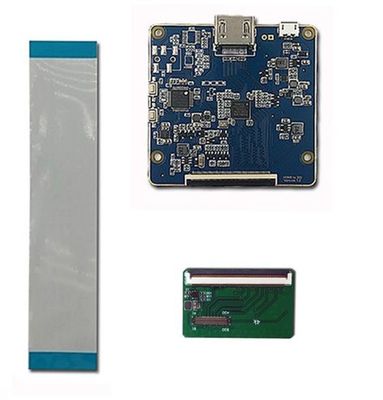

Product Details:
|
| Panel Model: | LS055D1SX02 | Size: | 5.5" |
|---|---|---|---|
| Brightness: | 500 Cd/m² (Typ.) | Resolution: | 2160(RG/BR/GB)×3840, UHD, 658PPI |
| Response Time: | 32 (Typ.)(Tr+Td) | Panel Type: | CG-Silicon, LCM |
| Input Voltage: | 1.36/1.85/5.8/-5.6V (Typ.)(DVDD/AVDD/VSP/VSN) | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||
LS055 Series LS055D1SX02 LS055D1SX05(G)
| Basic Information : | Brand | SHARP | Model | LS055D1SX02 |
|---|---|---|---|---|
| Type | LCM CG-Silicon | Used For | ||
| Screen Size | 5.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 60 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 2160(RG/BR/GB)×3840, UHD | Dot Pitch(mm) | 0.01575×0.03150 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rainbow-RGB | Pixel Pitch(mm) | 0.0315×0.0315 (H×V) [658PPI] | |
| Mechanical Size : | Active Area(mm) | 68.04(H) × 120.96(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type | |
| Touch Panel : | Touch Points | - | Touch Panel | PCAP |
| TP Controller | With touch controller | Touch Signal | I²C |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥100) | Display Mode | New Mode2, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 32 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.286; Y:0.299 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 8951K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 90% | sRGB | 100% coverage |
| Adobe RGB | 83% coverage | DCI-P3 | 91% coverage | |
| Rec.2020 | 67% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 1.36/1.85/5.8/-5.6V (Typ.)(DVDD/AVDD/VSP/VSN) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 324/391mW (Typ./Max.) | |||||
| Signal Type : | MIPI (2 ch, 4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| BB35-PC60-3A-D8 | 1 pcs | 60 pins | ||||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | COG Built-in NT35950 |
LS055D1SX02 supports display 2160(RG/BR/GB)×3840 (UHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in Rainbow-RGB, according to calculation of Panelook it's pixel density is 658 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm. As a New Mode2, Normally Black, Transmissive LCM product, LS055D1SX02 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 32 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS055D1SX02 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.36/1.85/5.8/-5.6V (Typ.)
