Product Details:
|
| Screen Size: | 5.5 Inch | Model Name: | LS055D1SX05(G) |
|---|---|---|---|
| Pixel Number: | 2160(RG/BR/GB)×3840 | Active Area(mm): | 68.04 × 120.96 (H×V) |
| Luminance: | 530 Cd/m² (Typ.) | Voltage Supply: | 1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN) |
| Backlight: | 6S3P WLED , No Driver | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||
LS055 Series LS055D1SX05(G) LS055D1SX02
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS055D1SX05(G) | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 70 °C | - |
| Panel Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2160(RG/BR/GB)×3840 [UHD] | Rainbow-RGB | 0.0315×0.0315 [658PPI] | 0.01575×0.03150 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 68.04(H) × 120.96(V) | - | 69.84(H) × 128.76(V) | 1.24 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 17.0g (Typ.) | - | - | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN) | - | 696/839mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (2 ch, 4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| BB35-PC60-3A-D8 | 60 pins | 1 pcs | ||||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 530 (Typ.) | 80/80/80/80 (Min.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | New Mode2, Normally Black, Transmissive | 1200 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8517K | 16.7M (8-bit) | X:0.285; Y:0.315 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 90% | 100% | 83% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 91% | 67% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 120 pcs / box | TBD | 530×365×235 mm (L×W×H) |

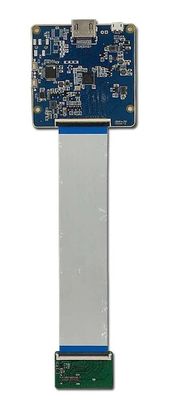

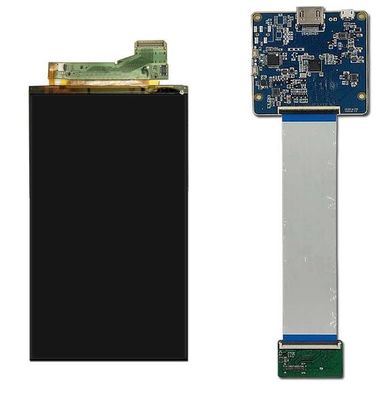

LS055D1SX05(G) supports display 2160(RG/BR/GB)×3840 (UHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in Rainbow-RGB, according to calculation of Panelook it's pixel density is 658 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 69.84(W)×128.76(H) mm, net weight of 17.0g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS055D1SX05(G) can provides 530 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS055D1SX05(G) utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.36/1.85/5.8/-5.6V (Typ.)
