5.5" 1440×2560 RGB 480CD/M2 Sharp TFT LCD Display LS055R1SC01

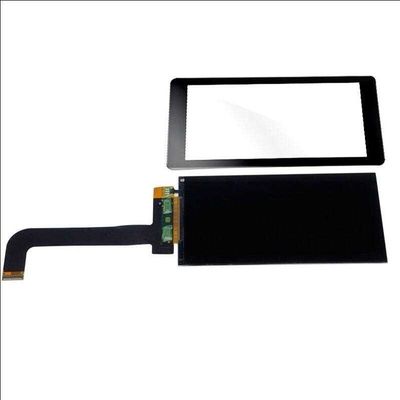

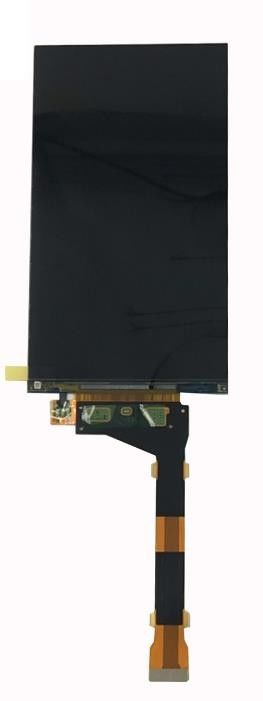

Large Image : 5.5" 1440×2560 RGB 480CD/M2 Sharp TFT LCD Display LS055R1SC01

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LS055R1SC01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	120 pcs / box - 580×365×235 mm
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	20000PCS

Contact Now

5.5" 1440×2560 RGB 480CD/M2 Sharp TFT LCD Display LS055R1SC01

Description

Size:	5.5INCH	Outline Size:	70.87(W)×128.45(H) ×1.45(D) Mm
Resolution:	1440(RGB)×2560	Brightness:	480 Cd/m² (Typ.)
Input Voltage:	1.8/5.75/-5.75V (Typ.)(IOVDD/AVDD+/AVDD-)	Contrast Ratio:	1300:1 (Typ.) (TM)
Model:	LS055R1SC01	Environment:	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
Highlight:	CCFL TFT LCD Screen , LVDS TFT LCD Display

1.Sharp LS055R1SC01 Application Details

Basic Detail :	Manufacturer SHARP LS055R1SC01Model Name Panel Type CG-Silicon , LCM Another Name - Panel Size 5.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 60 °C ST Temperature -30 ~ 70 °C RoHS -Vibration Level

2.Sharp LS055R1SC01 Optical Details

Basic Detail :	Luminance 480 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 35 (Max.)(Tr+Td) ms Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode New Mode2, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.300; Wy:0.320 Support Color 16.7M (8-bit) Color Temperature 7351K White Variation 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 71% sRGB 95% coverage Adobe RGB 73% coverage DCI-P3 74% coverage Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.Sharp LS055R1SC01 Mechanical Details

Pixel Features :	Number of Pixel 1440(RGB)×2560, Quad-HD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.01575×0.04725 mm Pixel Pitch(W×H) 0.04725×0.04725 mm [537PPI]
Physical Size :	Active Viewing 68.04(W)×120.96(H) mm Overall Dim. 70.87(W)×128.45(H) mm Bezel Opening - Overall Depth 1.35±0.1 mm
Outline Features :	Form Shape Flat Rectangle Orientation Portrait type Aspect Ratio(W:H) 9:16 Shape Style
Other Detail :	Mass 24.9g (Typ.) Surface Hard coating (3H)

4.Sharp LS055R1SC01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Driver IC :	COG Built-in R63423

5.Sharp LS055R1SC01 Interface Detail

Signal Electrical :	Input Current 15.4/14.5/11.1mA (Typ.)(IOIDD/AIDD+/AIDD-) Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVDD/AVDD+/AVDD-) Consumption - Signal Interface MIPI (2 ch, 4 data lanes)
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.3 mm 45 pins 1 pcs

6.Sharp LS055R1SC01 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange - Lamp Shape - Lamp Life -
Lamp Electrical :	Input Voltage 21.0/23.0V (Typ./Max.) Input Current Consumption 840mW (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

7.Sharp LS055R1SC01 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	120 pcs / box	-	580×365×235 mm

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
