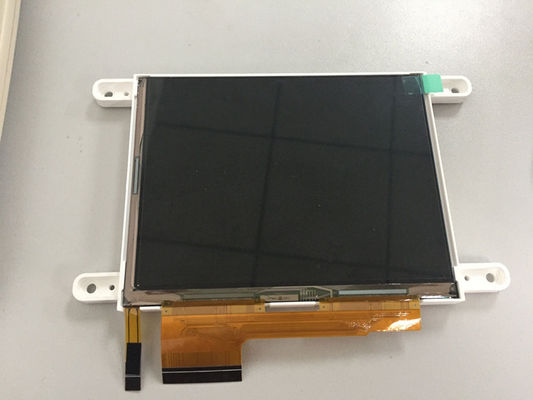

Product Details:
|
| MODEL NUMBER: | TM050QDH07 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 5.0 Inch | RESOLUTION: | 640(RGB)×480 [VGA] 160PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | SIGNAL LNTERFACE: | LVDS |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10 | ||
| Highlight: | WLED Backlight Tianma TFT,WQVGA TIANMA LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | TM050QDH07 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.306; Wy:0.315 | Support Color | 16.7M (6-bit + Dithering) |
| Color Temperature | 7042K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020 |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0529×0.1587 mm | Pixel Pitch(W×H) | 0.1587×0.1587 mm [160PPI] | |
| Physical Size : | Active Viewing | 101.568(W)×76.176(H) mm | Overall Dim. | 113.6(W)×88.4(H) mm |
| Bezel Opening | - | Overall Depth | 8.1/10 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||

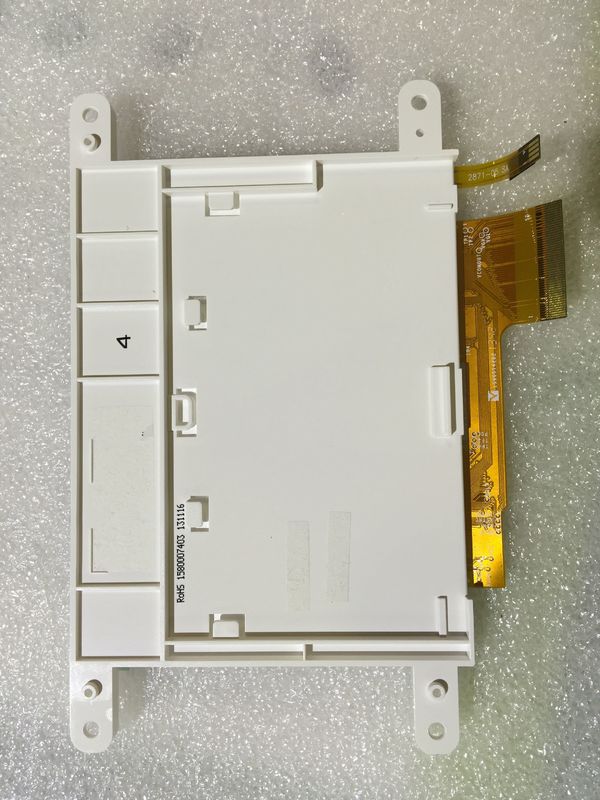

| Fixation : | Face mounting holes (4-Φ3.4) on left, right slugs | |||
| Other Detail : | Mass | 80.0±4.0g | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | COG Built-in NT39403B*2 + NT39207 |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | 5.53/9.37/0.27/0.17mA (Typ.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/5.0/15.0/-8.2V (Typ.)(VDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.08W (Max.) | Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||

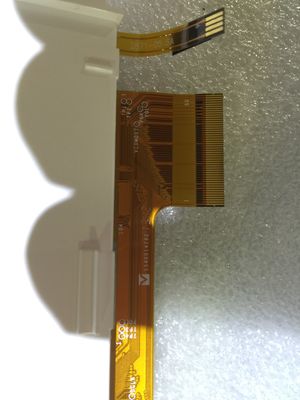

| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S5P | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 60/125mA (Typ./Max.) | Input Voltage | 9.0/9.6/10.0V (Min./Typ./Max.) | ||
| Consumption | 576/1250mW (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 1.0 mm | 4 pins | ||||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 40 pcs / box | 516×336×226 mm | 6.06±0.30 Kgs |
