LS055R1SX08 Sharp 5.5INCH 1440×2560RGB 450 cd/m² NDUSTRIAL LCD DISPLAY

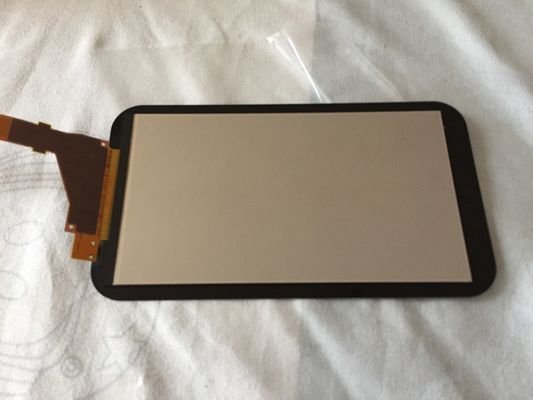

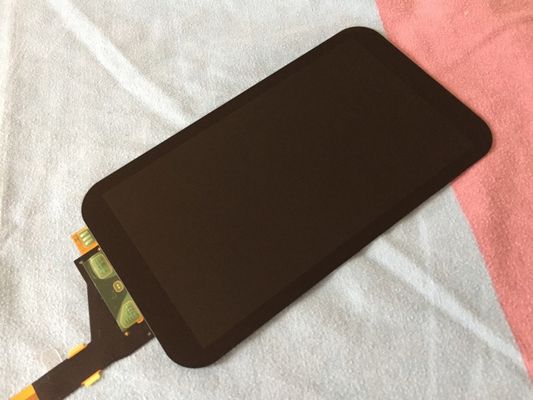

Large Image : LS055R1SX08 Sharp 5.5INCH 1440×2560RGB 450 cd/m² NDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LS055R1SX08

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	240 pcs / box 11.96 Kgs 580×365×279 mm
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	5000PCS

Contact Now

LS055R1SX08 Sharp 5.5INCH 1440×2560RGB 450 cd/m² NDUSTRIAL LCD DISPLAY

Description

SIZE:	5.5INCH	Resolution:	1440(RGB)×2560
BRIGHTNESS:	450 Cd/m² (Typ.)	Contrast Ratio:	1300:1 (Typ.) (TM)
Panel Type:	CG-Silicon, LCM	Viewing Angle:	80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Lamp Type:	7S2P WLED , Without Driver	Environment:	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
High Light:	CCFL TFT LCD Screen , LVDS TFT LCD Display

LS055 Series LS055R1SX08 LS055R1SX04 LS055R1SX03

Sharp LS055R1SX08 Application Details

Basic Detail :	Manufacturer SHARP LS055R1SX08Model Name Panel Type CG-Silicon , LCM Another Name - Panel Size 5.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 60 °C ST Temperature -30 ~ 70 °C RoHS -Vibration Level

Sharp LS055R1SX08 Mechanical Details

Pixel Features :	Number of Pixel 1440(RGB)×2560, Quad-HD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.01575×0.04725 mm Pixel Pitch(W×H) 0.04725×0.04725 mm [537PPI]
Physical Size :	Active Viewing 68.04(W)×120.96(H) mm Overall Dim. 70.94(W)×128.49(H) mm Bezel Opening - Overall Depth 1.35±0.1 mm
Outline Features :	Form Shape Flat Rectangle Orientation Portrait type Aspect Ratio(W:H) 9:16 Shape Style
Other Detail :	Mass 25.0g Surface -

Sharp LS055R1SX08 Interface Detail

Signal Electrical :	Input Current 23.5/15/14.0mA (Typ.)(IOICC/ISP/ISN) Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) Consumption - Signal Interface MIPI (2 ch, 4 data lanes)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS BM14B(0.8)-60DP-0.4V(51) 0.4 mm 60 pins 1 pcs

Sharp LS055R1SX08 Optical Details

Basic Detail :	Luminance 450 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 35 (Max.)(Tr+Td) ms Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode New Mode2, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.300; Wy:0.320 Support Color 16.7M (8-bit) Color Temperature 7351K White Variation 1.33 (Max.)(9 points)

Sharp LS055R1SX08 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Driver IC :	Built-in R63419B

Sharp LS055R1SX08 Lightting Details

Lamp Features :	Lamp Type WLED Amount 7S2P Position Edge light type Exchange - Lamp Shape 2 strings Lamp Life -
Lamp Electrical :	Input Voltage 21.0V (Typ.) Input Current 20mA (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

Sharp LS055R1SX08 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	240 pcs / box	11.96 Kgs	580×365×279 mm

LS055R1SX08 Sharp 5.5INCH 1440×2560RGB 450 cd/m² NDUSTRIAL LCD DISPLAY 0
