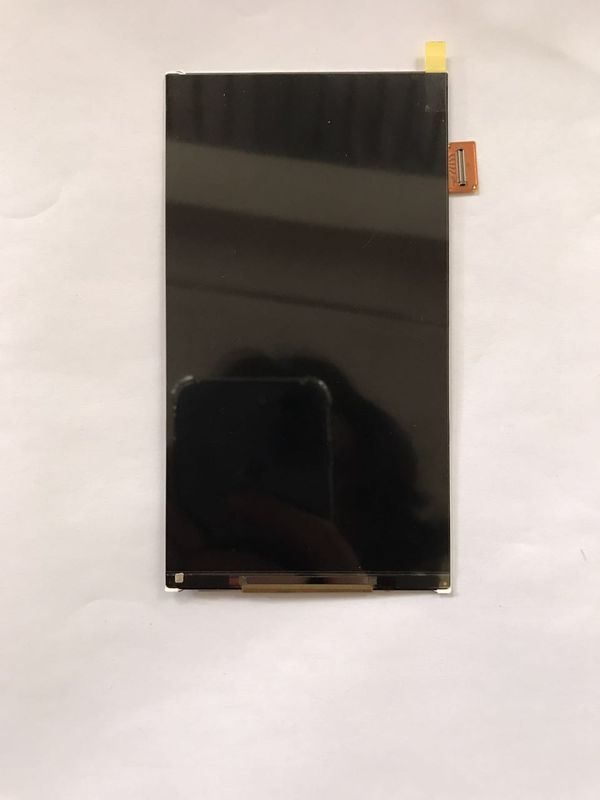

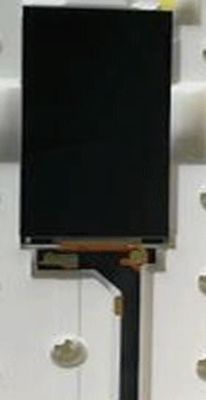

Product Details:
|
| Panel Brand: | Sharp | Size: | 5.5 Inch |
|---|---|---|---|
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down | Pixel Number: | 1536(RGB)×2560 546PPI |
| Luminance: | 460 Cd/m² (Typ.) | Outline(mm): | 73.824 × 126.44 × 1.4 (H×V×D) |
| Screen Type: | CG-Silicon | Storage Temp: | -30 ~ 70 °C |
| Operating Temp: | -20 ~ 60 °C | Touchscreen: | Without |
| Highlight: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS055R3SX01 | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 460 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 1280:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6778K | 16.7M (8-bit) | X:0.308; Y:0.327 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 98% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 8S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24/26.4V (Typ./Max.) | 20mA (Typ.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1536(RGB)×2560 | RGB Vertical Stripe | 0.0155×0.0465 mm | 0.0465×0.0465 mm [546PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 71.424×119.04 mm | - | 73.824×126.44 mm | 1.30±0.1 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:5 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 21.1g | - | - | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in S6D1HA0 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) | 43.0/37.4/33.7mA (Typ.)(IOIDD/ISP/ISN) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | WP9-P032VA1 | 1 pcs | 32 pins | 0.4 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 120 pcs / box | 8.20 Kgs | 575×360×225 mm (L×W×H) |
