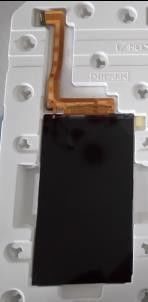

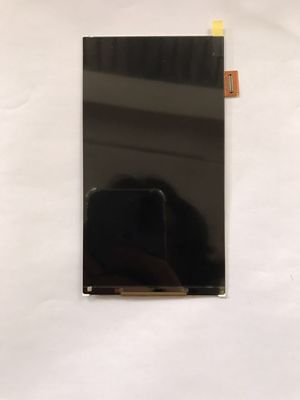

Product Details:
|
| BRAND: | Sharp | SIZE: | 5.5 Inch |
|---|---|---|---|
| MODEL NUMBER: | LS055T1SX01 | Luminance: | 500 Cd/m² (Typ.) |
| Active Area(mm): | 69.012 × 122.688 (H×V) | Bezel Area(mm): | 70.01 × 123.688 (H×V) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down | Refresh Rate: | 60Hz |
| Storage Temp: | -30 ~ 70 °C | Operating Temp.: | -20 ~ 60 °C |
| Highlight: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||
LS055 Series LS055T1SX01 LS055T3SX05 LS055T1SX01A
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS055T1SX01 | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1080(RGB)×1920, FHD | RGB Vertical Stripe | 0.0213×0.0639 mm | 0.0639×0.0639 mm [397PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 69.012×122.688 mm | 70.01×123.688 mm | 71.72×130.4 mm | 1.66±0.15 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 9:16 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 25.0g (Typ.) | - | Clear | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | Built-in R63311 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) | 16.9/16.5/11.6mA (Typ.)(IDDIO/ISP/ISN) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Panasonic | AXT630124 | 1 pcs | 30 pins | 0.4 mm | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8266K | 16.7M (8-bit) | X:0.290; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 96% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 71% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 2 strings | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 120 pcs / box | 7.5 Kgs | 580×365×187 mm (L×W×H) |
