Product Details:
|
| Size: | 5.5 Inch | Type: | CG-Silicon , LCM |
|---|---|---|---|
| BRIGHTNESS: | 500 Cd/m² (Typ.) | RESOLUTION: | 1080(RGB)×1920 |
| Touch Panel: | Without | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Temperature: | -20 ~ 60 °C | Storage Temperature: | -30 ~ 70 °C |
| High Light: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||

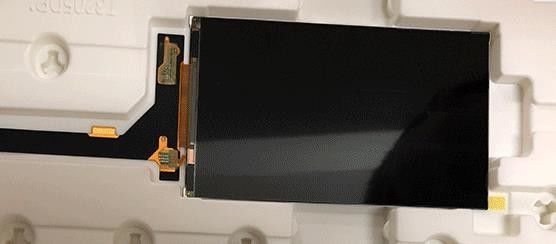

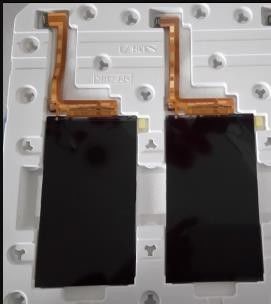

LS055 Series LS055T1SX01A LS055T1SX01 LS055T3SX05
| Basic Info : | Panel Brand | SHARP | Panel Model | LS055T1SX01A |
|---|---|---|---|---|
| Diagonal Size | 5.5" | Application | ||
| Panel Type | CG-Silicon , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 60 °C | Storage Temp. | -30 ~ 70 °C |
| RoHS State | Vibration Rating | - |
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | New Mode2, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | - | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.310 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 8266K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 96% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Pixel Features : | Pixel Format | 1080(RGB)×1920 [FHD] | Dot Pitch | 0.0213×0.0639 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.0639×0.0639 mm (H×V) [397PPI] | |
| Mechanical Size : | Display Area | 69.012×122.688 mm (H×V) | Bezel Area | 70.01×123.688 mm (H×V) |
| Outline Dim. | 71.72×130.4 mm (H×V) | Outline Depth | 1.66±0.15 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 9:16 (H:V) | Shape Style | ||
| Other Features : | Weight | 25.0g (Typ.) | Surface | Clear |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | Built-in R63311 |
| Signal Systerm : | MIPI (4 data lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) | Current Input | 16.9/16.5/11.6mA (Typ.)(IDDIO/ISP/ISN) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Panasonic | AXT630124 | 0.4 mm | 30 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 120 pcs / box | 7.5 Kgs | 580×365×187 mm |
