Product Details:
|
| Resolution: | 1080(RGB)×1920 | Brightness: | 400 Cd/m² (Typ.) |
|---|---|---|---|
| Bezel Opening: | 73.9(W)×130.6(H) Mm | Panel Type: | CG-Silicon, LCM |
| Size: | 5.9 Inch | Panel Model: | LS059T1SX01 |
| Display Area: | 72.9(W)×129.6(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Temp: | -20 ~ 60 °C | Storage Temp: | -30 ~ 70 °C |
| High Light: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||

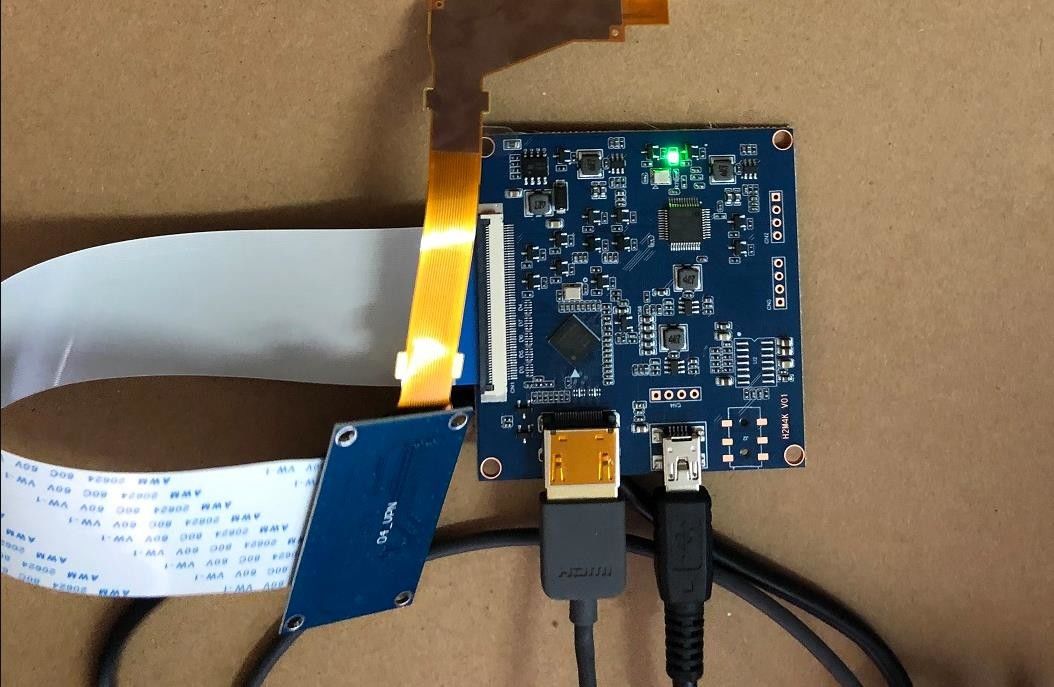

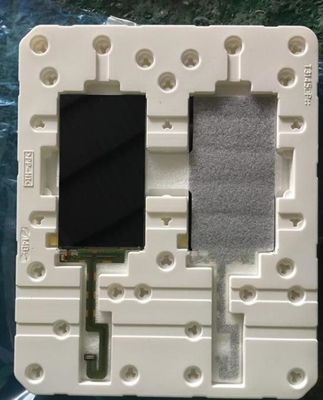

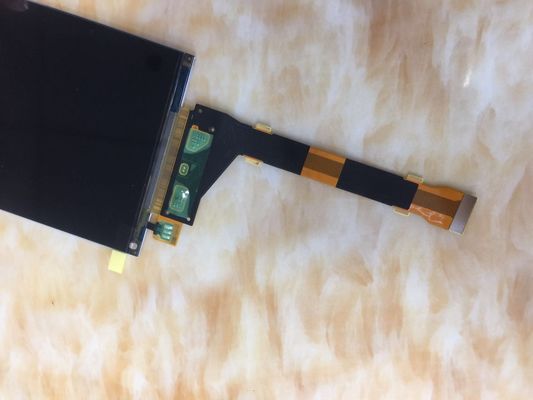

LS059 Series LS059T1SX01 LS059T1SX03
| Basic Detail : | Manufacturer | SHARP | Model Name | LS059T1SX01 |
|---|---|---|---|---|
| Panel Type | CG-Silicon , LCM | Another Name | - | |
| Panel Size | 5.9 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Vibration Level | - | RoHS |
| Signal Electrical : | Input Current | 16.9/17.0/12.0mA (Typ.)(IDDIO/ISP/ISN) | Input Voltage | 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Panasonic | AXT630124 | 1 pcs | 0.4 mm | 30 pins | ||
| Pixel Features : | Number of Pixel | 1080(RGB)×1920 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0225×0.0675 mm | Pixel Pitch(W×H) | 0.0675×0.0675 mm [376PPI] | |
| Physical Size : | Active Viewing | 72.9(W)×129.6(H) mm | Overall Dim. | 76.2(W)×139.1(H) mm |
| Bezel Opening | 73.9(W)×130.6(H) mm | Overall Depth | 1.65 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 9:16 | Shape Style | ||
| Other Detail : | Mass | 33.0g | Surface | Clear |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | TBD (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | New Mode2, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 120 pcs / box | 580×365×187 mm | 8.5 Kgs |
LS059T1SX01 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 376 PPI. As for mechanical detail, it features active area of 72.9(W)×129.6(H) mm, outline size of 76.2(W)×139.1(H) mm, viewing area size of 73.9(W)×130.6(H) mm, with surface treament of Clear, net weight of 33.0g. As a New Mode2, Normally Black, Transmissive LCM product, LS059T1SX01 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS059T1SX01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/5.6/-5.4V (Typ.)
