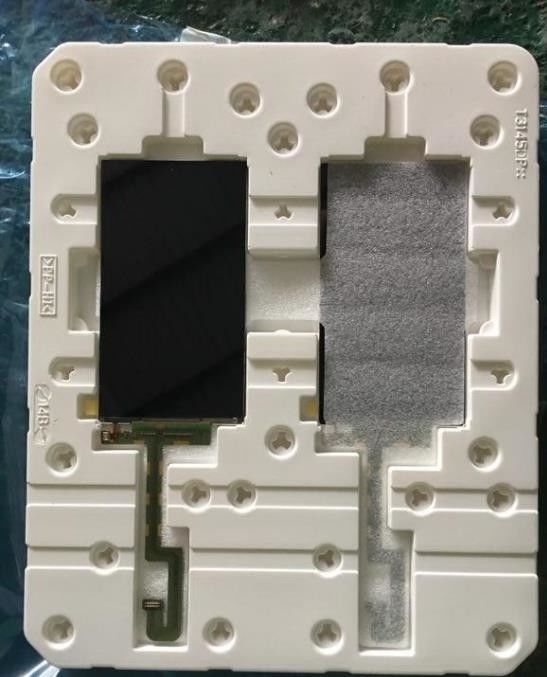

Product Details:
|
| Panel Model: | LS059T1SX03 | Panel Type: | CG-Silicon |
|---|---|---|---|
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Lamp Type: | 7S2P WLED , Without Driver |
| Brightness: | 420 Cd/m² (Typ.) | Resolution: | 1080(RGB)×1920, FHD, 376PPI |
| Operating Temp: | -20 ~ 60 °C | Storage Temp.: | -30 ~ 70 °C |
| Display Area: | 72.9(W)×129.6(H) Mm | Brand: | Sharp |
| Highlight: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||
LS059 Series LS059T1SX03 LS059T1SX01

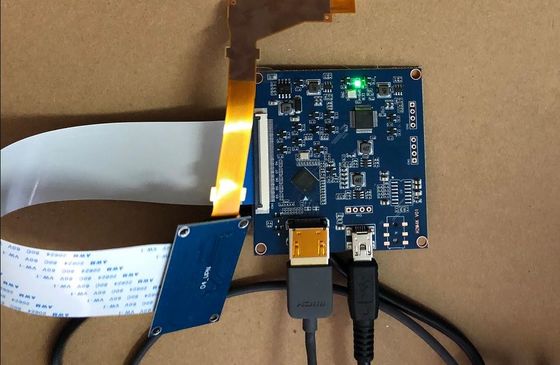

| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS059T1SX03 | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Screen Size : | 5.9" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1080(RGB)×1920, FHD | RGB Vertical Stripe | 0.0225×0.0675 mm | 0.0675×0.0675 mm [376PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 72.9×129.6 mm | - | 76×137.7 mm | 1.53±0.15 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 9:16 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 26.0g | - | Clear | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 420 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | TBD (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 99% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in R63311 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) | 16.9/17.7/12.5mA (Typ.)(IDDIO/ISP/ISN) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Panasonic | AXT630124 | 1 pcs | 30 pins | 0.4 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 80 pcs / box | 6.5 Kgs | 580×365×187 mm (L×W×H) |
LS059T1SX03 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 376 PPI. As for mechanical detail, it features active area of 72.9(W)×129.6(H) mm, outline size of 76(W)×137.7(H) mm, with surface treament of Clear, net weight of 26.0g. As a New Mode2, Normally Black, Transmissive LCM product, LS059T1SX03 can provides 420 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS059T1SX03 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/5.6/-5.4V (Typ.)
