Product Details:
|
| Pixel Format: | 1440(RGB)×2560 [Quad-HD] 490PPI | Size: | 6.0 Inch |
|---|---|---|---|
| Type: | CG-Silicon, LCM | Outline Dim: | 76.92(H)×140.13(V) ×1.54(D) Mm |
| Power Supply: | 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) | Light Source: | WLED [8S2P] , W/O Driver |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down | Luminance: | 420 Cd/m² (Typ.) |
| Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C | Contrast Ratio: | 1300:1 (Typ.) (TM) |
| High Light: | CCFL TFT LCD Screen,LVDS TFT LCD Display |
||

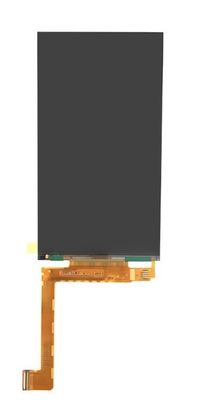

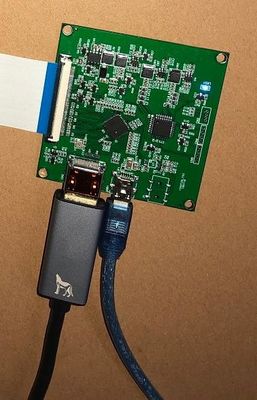

LS060 Series LS060R1SX02 LS060R1SX01
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS060R1SX01 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 420 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 35 (Max.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | New Mode2, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8266K | 16.7M (8-bit) | X:0.290; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 94% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 71% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 points) | ||
| Panel Size : | 6.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1440(RGB)×2560 [Quad-HD] | RGB Vertical Stripe | 0.05175×0.05175 [490PPI] | 0.01725×0.05175 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 74.52(H) × 132.48(V) | 75.02(H) × 133.21(V) | 76.92(H) × 140.13(V) | 1.39±0.15 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 23.7g (Typ.) | - | - | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) | 14.6/16.2/14.0mA (Typ.)(IOICC/ISP/ISN) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (2 ch, 4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| Panasonic | AXT650124 | 0.4 mm | 50 pins | 1 pcs | ||

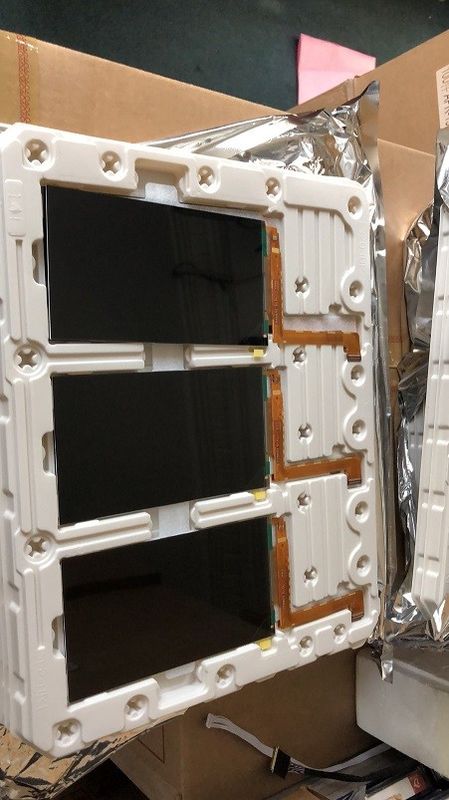

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 240 pcs / box | 12 Kgs | 580×365×279 mm (L×W×H) |
LS060R1SX01 supports display 1440(RGB)×2560 (Quad-HD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 490 PPI. As for mechanical detail, it features active area of 74.52(W)×132.48(H) mm, outline size of 76.92(W)×140.13(H)×1.54(D) mm, viewing area size of 75.02(W)×133.21(H) mm, net weight of 23.7g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS060R1SX01 can provides 420 cd/m² display brightness 1300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)
