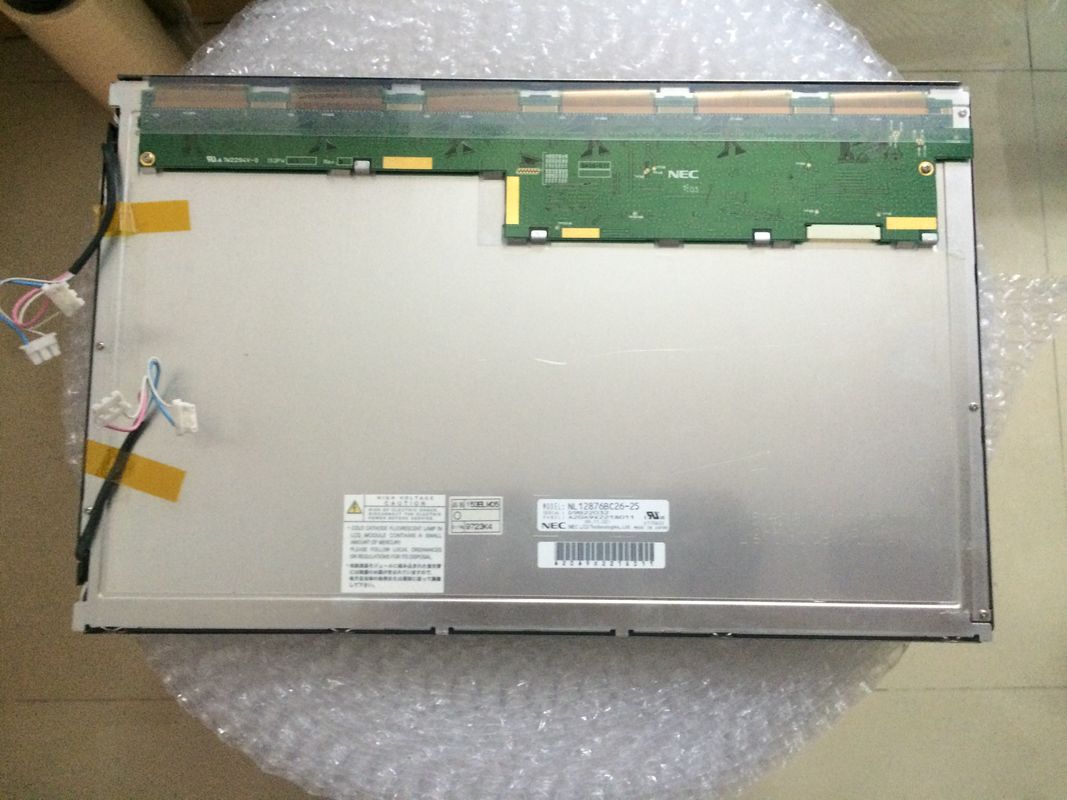

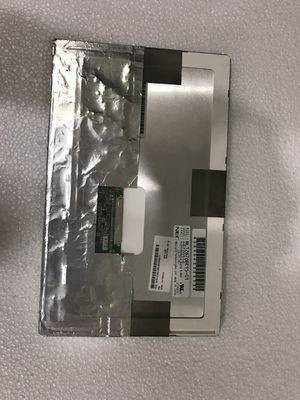

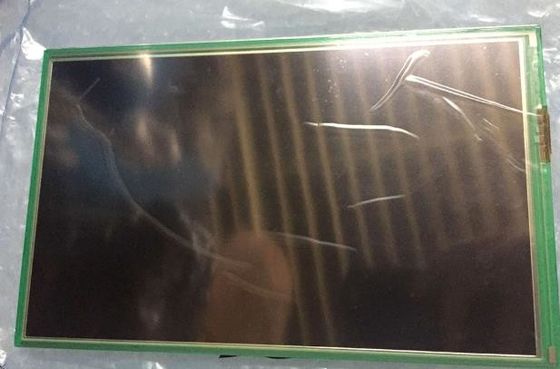

Product Details:
|
| MODEL NUMBER: | NL12876BC15-01 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 8.9INCH | RESOLUTION: | 1280×768RGB |
| BRIGHTNESS: | 280CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C | ||
| High Light: | NLT WLED LVDS TFT Display,1280×768RGB WLED LVDS TFT Display,280nits LCM NEC Display |
||
| Basic Information : | Brand | Model | NL12876BC15-01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.9" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 70 °C | Operating Temp. | -20 ~~ 60 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) |
| Pixel Features : | Resolution | 1280(RGB)×768, WXGA | Dot Pitch(mm) | 0.0505×0.1515 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1515×0.1515 (H×V) [167PPI] | |
| Mechanical Size : | Active Area(mm) | 193.92(H) × 116.352(V) | Bezel Area(mm) | 196.52(H) × 118.95(V) |
| Outline Dim.(mm) | 209.2(H) × 130.3(V) | Depth(mm) | 7.2±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Mounting : | Without | |||
| Other Spec : | Weight | 265g (Typ.) | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 280 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 6/2 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.322; Y:0.340 | Display Colors | 262K (6-bit) |
| Color Temperature | 5973K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 500mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.65W (Typ.) | |||||
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF19L-30P-1H | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C6B-200A | |
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 11S3P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 35.2/38.5V (Typ./Max.) | Current Supply | 20/22mA (Typ./Max.) | ||
| Consumption | 2.11W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
