Product Details:
|

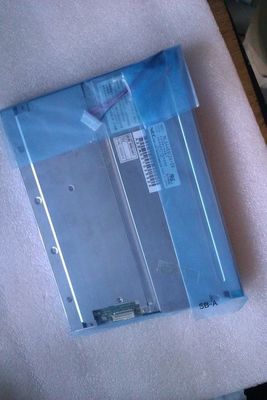

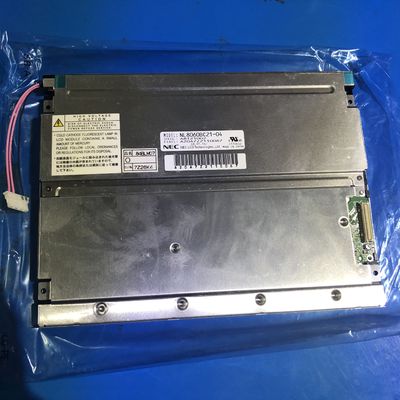

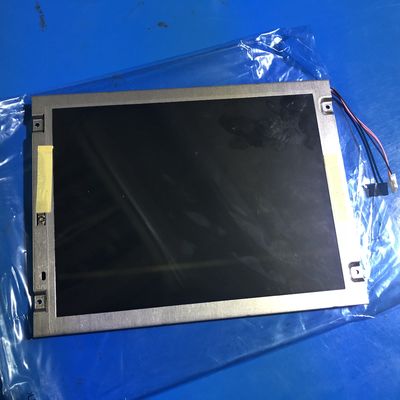

| MODEL NUMBER: | NL8060BC21-04 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | CCFL TTL NEC TFT Display,800×600RGB NEC TFT Display,400CD/M2 NEC TFT Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL8060BC21-04 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.4×127.8 mm | 174.0×131.4 mm | 200×152 mm | 10.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 330/350g (Typ./Max.) | - | Clear, Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (4-Ф2.8) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/80/60 (Typ.)(CR≥10) | 6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 56% | 42% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 41% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | - | 2 pcs | Straight | Replaceable (84LHS06) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 435V (Typ.) | 3.0/5.0/5.5mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 45/60Khz (Min./Max.) | 1050/1250V (Min.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-04VS-1 | 1 pcs | 4 pins | 4.0 mm | BLL-4PINS-HHNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 360/235mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9C-41P-1V | 1 pcs | 41 pins | 1.0 mm | DRGB-41P1C6B-010B | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
