Product Details:
|
MODEL NUMBER: | NL6448BC26-01F | BRAND: | NEC |
---|---|---|---|
SIZE: | 8.4INCH | RESOLUTION: | 640×480RGB |
BRIGHTNESS: | 600CD/M2 | Lamp Type: | CCFL |
TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
High Light: | CCFL TTL Industrial TFT Panel,LCM 640×480 Industrial TFT Panel,600CD/M2 NEC TFT Panel |

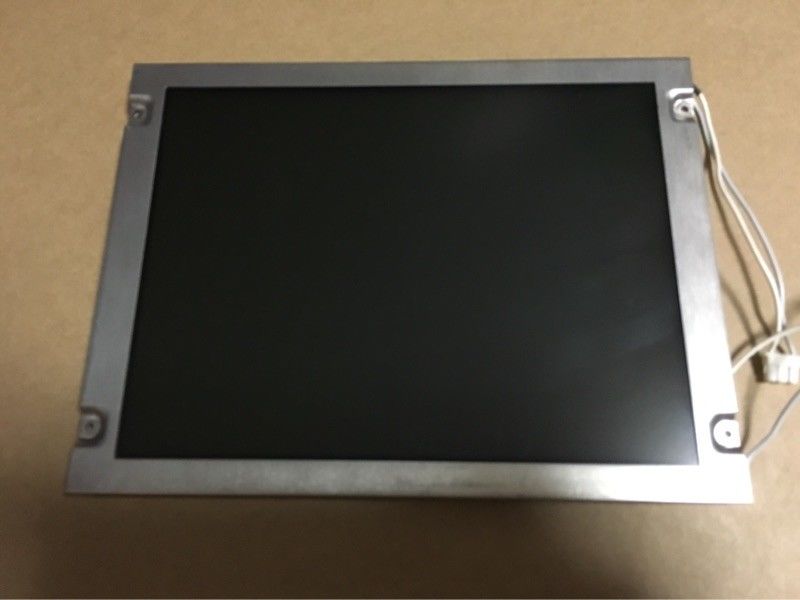

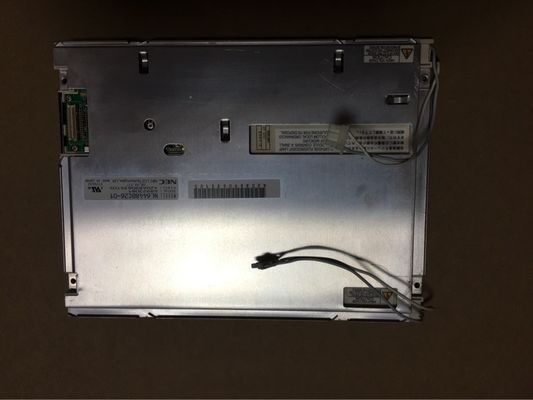

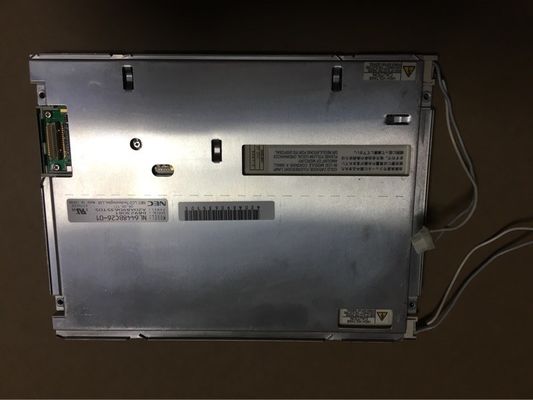

NL6448BC26-01F is a 8.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 70°C .
Basic Information : | Brand | Model | Type | Model Alias |
---|---|---|---|---|
NL6448BC26-01F | a-Si TFT-LCD , LCM | - | ||
Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
- | 0 ~ 60 °C | -20 ~ 70 °C | - |
Panel Size : | 8.4 inch | |||
---|---|---|---|---|
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
640(RGB)×480, VGA | RGB Vertical Stripe | 0.089×0.267 mm | 0.267×0.267 mm [95PPI] | |
Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
170.88×128.16 mm | - | 200×152 mm | 12.0±0.7 mm | |
Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
Flat Rectangle | 4:3 (W : H) | Landscape type | ||
Other Features : | Panel Cover | Weight | Surface | |
- | 375g (Typ.) | Antiglare |
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
---|---|---|---|
600 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
55/55/40/70 (Typ.)(CR≥10) | 6 o'clock | 10/25 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
- | 262K (6-bit) | - |
Signal Electrical : | Current Input | Voltage Input | Consumption | |||
---|---|---|---|---|---|---|
- | 3.3/5.0V (Typ.)(VCC) |
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
---|---|---|---|---|---|---|
CCFL | Edge light type | Straight | 2 pcs | - | - | |
CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
5.0mA (Typ.) | 410V (Typ.) | 4.1W (Typ.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
