Product Details:
|
| MODEL NUMBER: | NL8060BH18-01 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 7.2INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C | ||
| Highlight: | NLT 7.2in NEC TFT Display,NEC TFT Display 400CD/M2,CCFL LVDS Industrial LCD Panel |
||

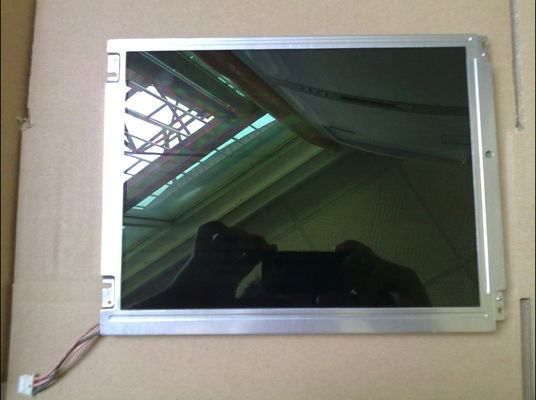

NL8060BH18-01 is a 7.2" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without touch screen. It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -20 ~ 60°C .It's general features are summarized by Panelook in the following: 3D Display, 180° Reverse, 6/8 bit . Based on its features, Panelook recommend that this model be applied to Industrial etc. and last shippment on Q3, 2015, Now this model is discontinued. There are 2 items stock and 1 suppliers of this model on Panelook. We inputted this model's specification on Apr 4 2013 for the first time, and the latest update on Jun 21 2022. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail of NL8060BH18-01. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL8060BH18-01 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 55 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 80/80/80/60 (Typ.)(CR≥10) | 18 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K/16.7M (6-bit / 8-bit) | - | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| 3D (Naked eye) | No | - |
| Panel Size : | 7.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | Horizontally Double-Density Pixel | 0.183×0.183 [138PPI] | 0.0915×0.061 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 146.4(H) × 109.8(V) | - | 166.6(H) × 129.3(V) | 9.6 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 260g (Typ.) | - | - | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
