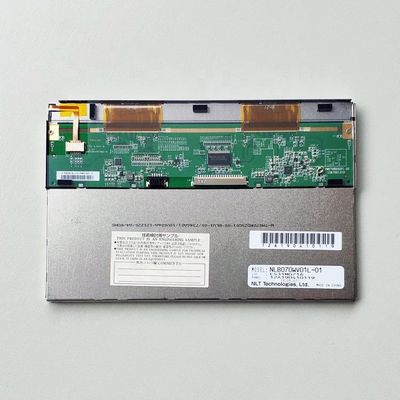

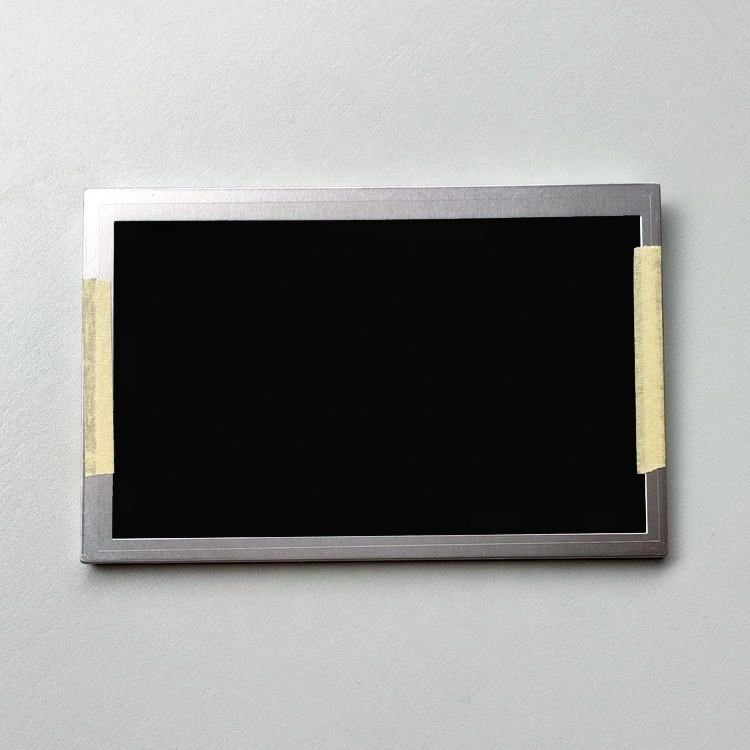

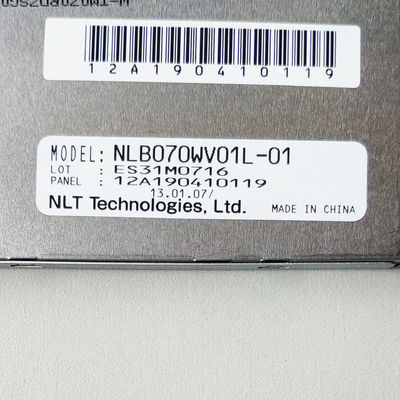

Product Details:
|
| MODEL NUMBER: | NLB070WV01L-01 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480RGB |
| BRIGHTNESS: | 300CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | 300nits LCM NEC TFT Display,NLT 7in NEC TFT Display,800×480RGB TFT LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | NLB070WV01L-01 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] | |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | 154.4×93.5 mm (H×V) |
| Outline Dim. | 170×111 mm (H×V) | Outline Depth | 8.25±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 160/175g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 86% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (70LHS201) | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSB24038P5 | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 4.5/12.6V (Min./Max.) | Current Input | 240/100mA (Typ.)(5V/12V) | ||
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 150/250mA (Typ./Max.) | ||
| Consumption | 1.02W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C6B-230B | |
