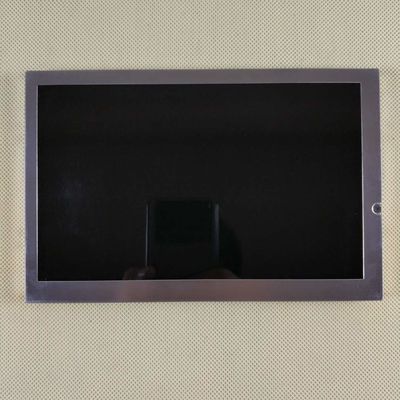

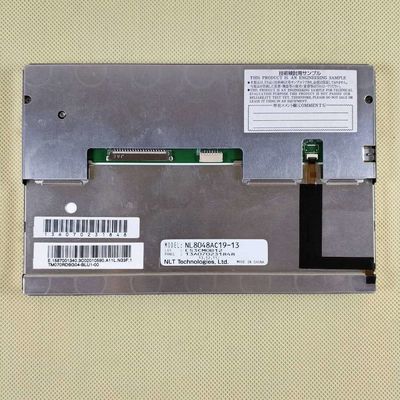

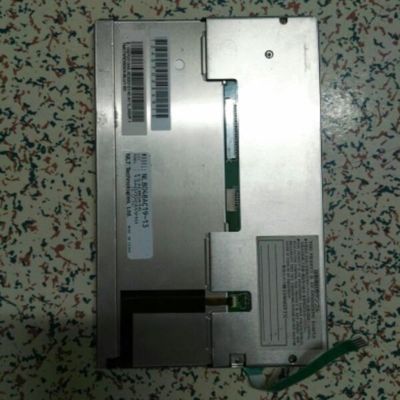

Product Details:
|
| MODEL NUMBER: | NL8048AC19-13 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480RGB |
| BRIGHTNESS: | 500CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | Nput Voltage: | 3.3V |
| Highlight: | 500nits LCM TFT LCD Panel,NLT 7" TFT LCD Panel,2.4W TFT LCD Screen |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL8048AC19-13 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 8 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 86% | 66% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | 154.4(H) × 93.5(V) | 170(H) × 111(V) | 8.5±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 185/200g (Typ./Max.) | - | Clear, Hard coating (3H) | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 190/290mA (Typ./Max.) | 0.63W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C6B-230B | |
