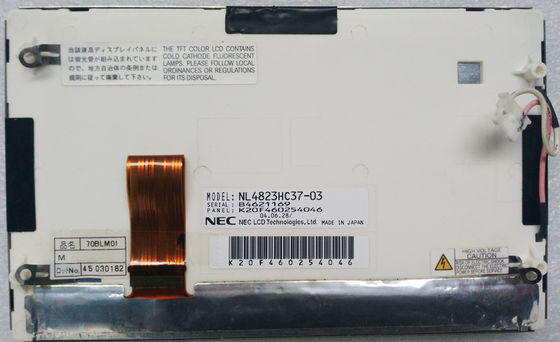

450CD/M2 LCM 480×234 7 INCH CCFL Analog NEC TFT Display NL4823HC37-03

Large Image : 450CD/M2 LCM 480×234 7 INCH CCFL Analog NEC TFT Display NL4823HC37-03

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL4823HC37-03

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

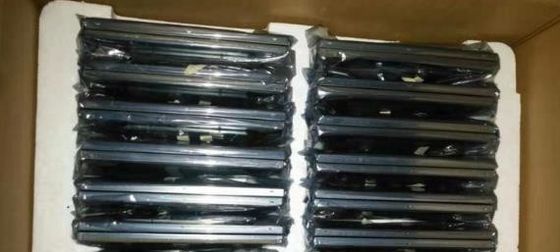

Packaging Details:	STANDARD PACKING
Delivery Time:	2-3 DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	600PCS

Contact Now

450CD/M2 LCM 480×234 7 INCH CCFL Analog NEC TFT Display NL4823HC37-03

Description

MODEL NUMBER:	NL4823HC37-03	BRAND:	NEC
SIZE:	7INCH	RESOLUTION:	480×234RGB
BRIGHTNESS:	450CD/M2	Lamp Type:	CCFL
TEMPERATURE RANGE:	Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
Highlight:	CCFL Analog NEC TFT Display , LCM 480×234 NEC TFT Display , 450CD/M2 Square TFT Display

NEC NL4823HC37-03 Application Details

Basic Detail :	Manufacturer Model Name NL4823HC37-03 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 7.0 inch Designed For
Maximum Ratings :	OP Temperature -10 ~ 70 °C ST Temperature -20 ~ 80 °C RoHS - Vibration Level 3.0G (29.4 m/s²)

NEC NL4823HC37-03 Optical Details

Basic Detail :	Luminance 450 cd/m² (Typ.) Contrast Ratio 300:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 38/27 (Typ.)(Tr/Td) ms Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Operating Mode SA-SFT, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.308; Wy:0.318 Support Color Full color Color Temperature 6879K White Variation 1.40 (Max.)(5 points)

NEC NL4823HC37-03 Mechanical Details

Pixel Features :	Number of Pixel 480(RGB)×234 Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.107×0.372 mm Pixel Pitch(W×H) 0.321×0.372 mm [76PPI]
Physical Size :	Active Viewing 154.08(W)×87.05(H) mm Overall Dim. 170(W)×104(H) mm Bezel Opening 158.2(W)×91.6(H) mm Overall Depth 8.5/13.7 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style
Fixation :	Rear mounting holes (4-Φ2.2) on pole.
Other Detail :	Mass 180/190g (Typ./Max.) Surface Hard coating (3H), Antireflection

NEC NL4823HC37-03 Interface Detail

Signal Electrical :	Input Current 2.5/25/0.3/1.0mA (Typ.)(ICC/IDD/IGON/IGOFF) Input Voltage 5.0/5.4/15.0/-14.0V (Typ.)(VCC/VDD/VGON/VGOFF) Consumption - Signal Interface TFT Specific Analog RGB
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 32 pins 1 pcs

NEC NL4823HC37-03 Lightting Details

Lamp Features :	Lamp Type CCFL Amount 1 pcs Position Edge light type Exchange - Lamp Shape U shape Lamp Life -
Lamp Electrical :	Input Voltage 880V (Typ.) Input Current 2.0/4.0/6.0mA (Min./Typ./Max.) Frequency 40/60KHz (Min./Max.) Turn-on Voltage 1410/1800V (Min.)(Ta=+25/-30℃)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BHR-02(8.0)VS-1N 8.0 mm 2 pins 1 pcs BLL-2PINS-HL
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
