NLT 6.5" 300CD/M2 LCM 800×600 Industrial NEC Display NL8060BC16-01

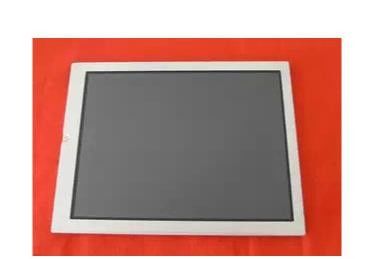

Large Image : NLT 6.5" 300CD/M2 LCM 800×600 Industrial NEC Display NL8060BC16-01

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL8060BC16-01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2day
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	800PCS

Contact Now

NLT 6.5" 300CD/M2 LCM 800×600 Industrial NEC Display NL8060BC16-01

Description

MODEL NUMBER:	NL8060BC16-01	BRAND:	NEC
SIZE:	6.5INCH	RESOLUTION:	800×600RGB
BRIGHTNESS:	300CD/M2	Lamp Type:	WLED
TEMPERATURE RANGE:	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Highlight:	LCM 800×600 Industrial NEC Display , NLT 6.5" Industrial NEC Display , 300CD/M2 Lcd Display Panels

NEC NL8060BC16-01 Application Details

Basic Detail :	Manufacturer Model Name NL8060BC16-01 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 6.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level 2.0G (19.6 m/s²)
Features :
Remarks :	SR-NLT

NEC NL8060BC16-01 Mechanical Details

Pixel Features :	Pixel Format 800(RGB)×600, SVGA Dot Pitch 0.055×0.165 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.165×0.165 mm (H×V) [153PPI]
Mechanical Size :	Display Area 132×99 mm (H×V) Bezel Area 135.5×102.4 mm (H×V) Outline Dim. 153×118 mm (H×V) Outline Depth 8.2 (Typ.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M2)
Other Features :	Weight 150/160g (Typ./Max.) Surface Clear, Hard coating (3H)

NEC NL8060BC16-01 Optical Details

Basic Information :	Brightness 300 cd/m² (Typ.) Contrast Ratio 150:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) Viewing Angle 25/25/25/25 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transflective Viewing Direction - Response Time 8/22 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6485K Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 40% sRGB 55% coverage Adobe RGB 41% coverage DCI-P3 41% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmittance - 3D Type - Reflectance 35% (Typ.)

NEC NL8060BC16-01 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 70K(Typ.) (Hours) Replacement Replaceable Lamp Shape 4 strings Position Edge light type
Lamp Electrical :	Voltage Input 13.5/15.4/17.6V (Min./Typ./Max.) Current Input 60/66mA (Typ./Max.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SM08B-SRSS-TB 1.0 mm 8 pins 1 pcs BLE-8PINS-ACACACAC

NEC NL8060BC16-01 Interface Detail

Signal Systerm :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 230 / 330mA (Typ.)(ICC/IDD)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration JAE FI-SE20P-HFE 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-170A
