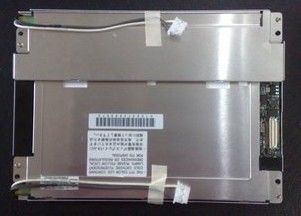

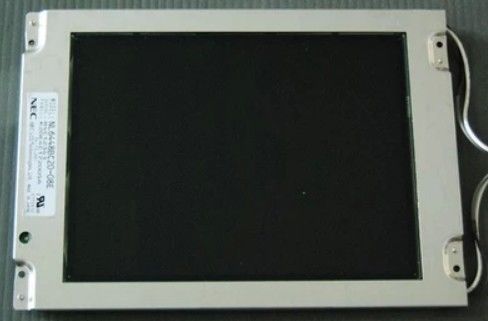

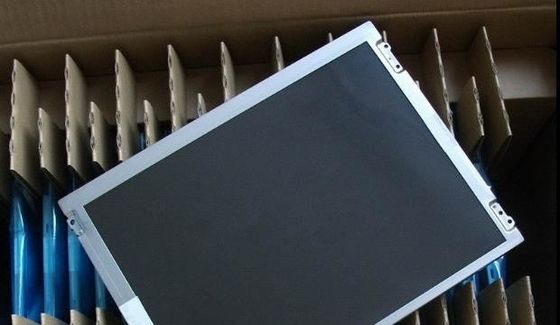

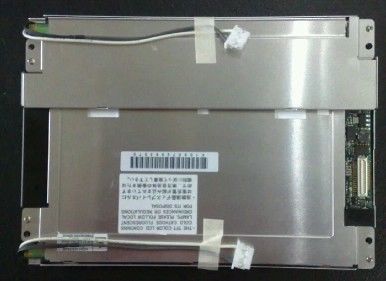

Product Details:
|
| MODEL NUMBER: | NL6448BC20-09Y | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 480×640RGB |
| BRIGHTNESS: | 270CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 70 °C | ||
| High Light: | LCM 480×640 NEC TFT Display,NEC TFT Display CCFL TTL,270CD/M2 Square LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL6448BC20-09Y | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 60 °C | -25 ~ 70 °C | - |
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480×640(RGB), VGA | RGB Horizontal Stripe | 0.207×0.069 mm | 0.207×0.207 mm [122PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 99.36×132.48 mm | 105.6×141.5 mm | 126.8×178.8 mm | 11.0±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 240/260g (Typ./Max.) | - | Antiglare, Hard coating (2H) | ||
| Holes & Brackets : | Face mounting holes (4-Ф2.8) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 270 cd/m² (Typ.) | TN, Normally White, Transmissive | 250:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 50/50/35/45 (Typ.)(CR≥10) | 13/36 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 5006K | 262K (6-bit) | X:0.345; Y:0.347 | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | - | 2 pcs | Straight | Replaceable (65LHS04) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 400V (Typ.) | 2.0/5.0/6.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 50/54/58KHz (Min./Typ./Max.) | 590/720V (Min.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 320/200mA (Typ.)(ICC) | 1.1W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9B-31P-1V | 1 pcs | 31 pins | 1.0 mm | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
