400nits LCM 1024×768 WLED LVDS Lcd Video Panel NL10276BC13-01D

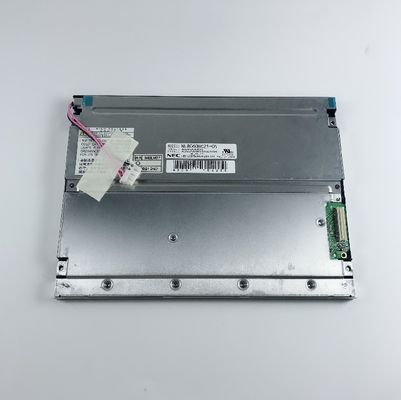

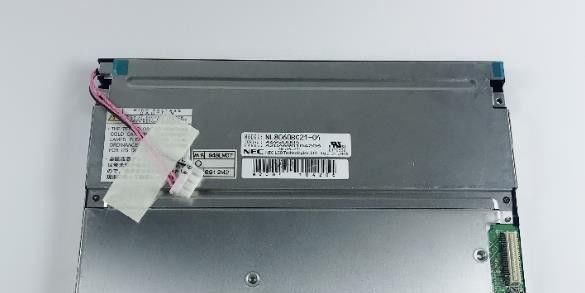

Large Image : 400nits LCM 1024×768 WLED LVDS Lcd Video Panel NL10276BC13-01D

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL10276BC13-01D

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2day
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	800PCS

Contact Now

400nits LCM 1024×768 WLED LVDS Lcd Video Panel NL10276BC13-01D

Description

MODEL NUMBER:	NL10276BC13-01D	BRAND:	NEC
SIZE:	6.5INCH	RESOLUTION:	1024×768RGB
BRIGHTNESS:	400CD/M2	Lamp Type:	WLED
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	LCM 1024×768 Lcd Video Panel , WLED LVDS Lcd Video Panel , 400nits Square TFT Display

NEC NL10276BC13-01D Overview

NEC LCD Technologies, Ltd. (hereafter called NEC) NL10276BC13-01D is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .

NEC NL10276BC13-01D Application Details

Basic Detail :	Manufacturer Model Name NL10276BC13-01D Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 6.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level -

NEC NL10276BC13-01D Optical Details

Basic Detail :	Luminance 400 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed - Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity - Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)

NEC NL10276BC13-01D Mechanical Details

Pixel Features :	Number of Pixel 1024(RGB)×768, XGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.043×0.129 mm Pixel Pitch(W×H) 0.129×0.129 mm [196PPI]
Physical Size :	Active Viewing 132.096(W)×99.072(H) mm Overall Dim. 153(W)×118(H) mm Bezel Opening - Overall Depth 9.0/9.5 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Other Detail :	Mass 170g (Typ.) Surface Antiglare

NEC NL10276BC13-01D Interface Detail

Signal Electrical :	Input Current - Input Voltage Consumption - Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features :	Position - Type Connector

NEC NL10276BC13-01D Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type (Top and Bottom) Exchange - Lamp Shape - Lamp Life -

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
