Product Details:
|

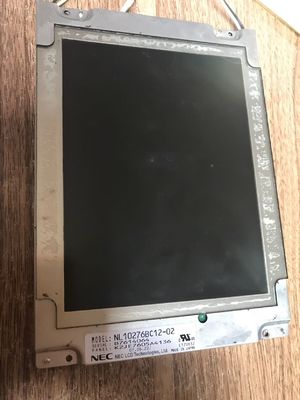

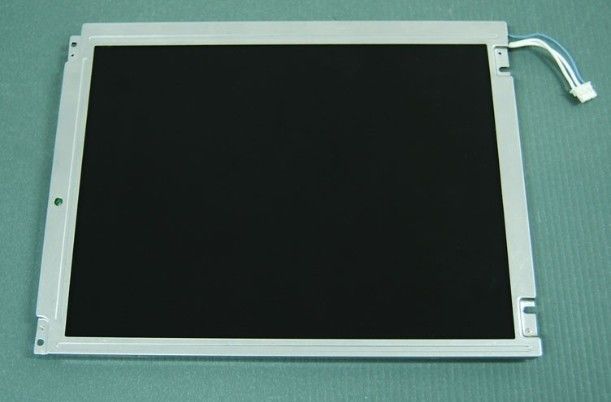

| MODEL NUMBER: | NL10276BC12-02 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 6.3INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 80 °C | ||
| High Light: | CCFL LVDS Square Tft Panel,1024×768 RGB Square Tft Panel,250nits NEC TFT Screen |
||
| Basic Detail : | Manufacturer | Model Name | NL10276BC12-02 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 65 °C | ST Temperature | -20 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 6/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.323; Wy:0.340 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 5927K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 54% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 40% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.042×0.126 mm | Pixel Pitch(W×H) | 0.126×0.126 mm [201PPI] | |
| Physical Size : | Active Viewing | 129.024(W)×96.768(H) mm | Overall Dim. | 178.8(W)×126.8(H) mm |
| Bezel Opening | 133.8(W)×101.4(H) mm | Overall Depth | 12.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 265/295g (Typ./Max.) | Surface | Antiglare, Hard coating (2H), Antireflection |
| Signal Electrical : | Input Current | 275mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SE20P-HF | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-180A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (63LHS01) | Amount | 2 pcs | Life | - | |
| Lamp Electrical : | Input Current | 2.0/5.0/5.5mA (Min./Typ./Max.) | Input Voltage | 400V (Typ.) | ||
| Frequency | 50/54/58KHz (Min./Typ./Max.) | Turn-on Voltage | 590/720V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
