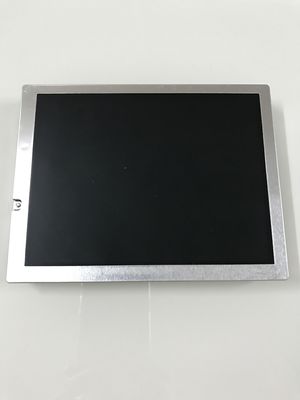

Product Details:
|
| MODEL NUMBER: | NL6448BC18-01F | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 800CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C | Input Voltage: | 3.3V |
| Frequency: | 60Hz | ||
| High Light: | NLT 5.7" TFT LCD Display,800CD/M2 TFT LCD Display,LCM 640×480 Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL6448BC18-01F  1 Compatible |
|
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS |
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 850 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 3/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.350 | Support Color | 262K (6-bit) |
| Color Temperature | 6963K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 80% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0605×0.1815 mm | Pixel Pitch(W×H) | 0.1815×0.1815 mm [139PPI] | |
| Physical Size : | Active Viewing | 116.16(W)×87.12(H) mm | Overall Dim. | 135(W)×104.6(H) mm |
| Bezel Opening | 120.2(W)×91.2(H) mm | Overall Depth | 10.4±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 165/175g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.3W (Typ.) |
| Signal Electrical : | Input Current | 100/175mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Kyocera Elco | 08-6260-033-340-829+ | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020B | |
| Lamp Features: | Lamp Shape | 2 strings × 2CN | Lamp Type | WLED | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (57LHS02) | Amount | 9S2P×2CN | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 25/27.5mA (Typ./Max.) | Input Voltage | 29.7/34.2V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM08B-SRSS-TB | 2 pcs | 1.0 mm | 8 pins | BLE-8PINS-ACACNNNN | |
| Backlight Driver : | No | |||||
