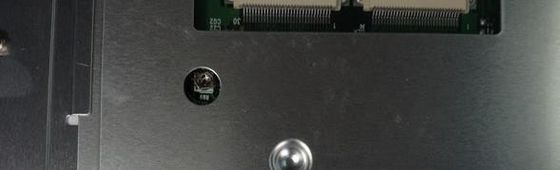

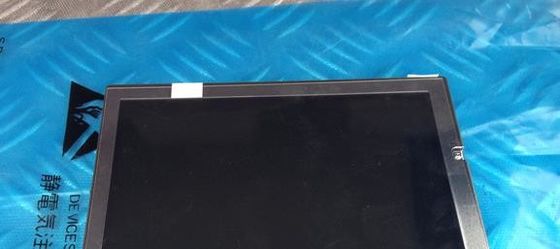

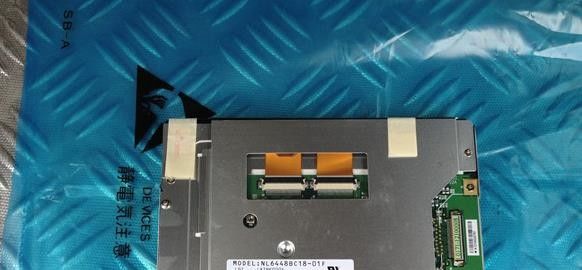

Product Details:
|
| MODEL NUMBER: | NL6448BC18-01B | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 320CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | LCM 640×480 Industrial TFT Display,WLED TTL Industrial TFT Display,320nits LCM TFT Panel |
||
| Basic Info : | Panel Brand | Panel Model | NL6448BC18-01B | |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | - | Storage Temp. | - |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | Based on NL6448BC18-01 | |||
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.0605×0.1815 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1815×0.1815 mm (H×V) [139PPI] | |
| Mechanical Size : | Display Area | 116.16×87.12 mm (H×V) | Bezel Area | - |
| Outline Dim. | 135×104.6 mm (H×V) | Outline Depth | 11.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch |
| Basic Information : | Brightness | 320 cd/m² (Typ.) | Contrast Ratio | 820:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.350 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6963K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 100/175mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Kyocera Elco | 08-6260-033-340-829+ | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020B | |
