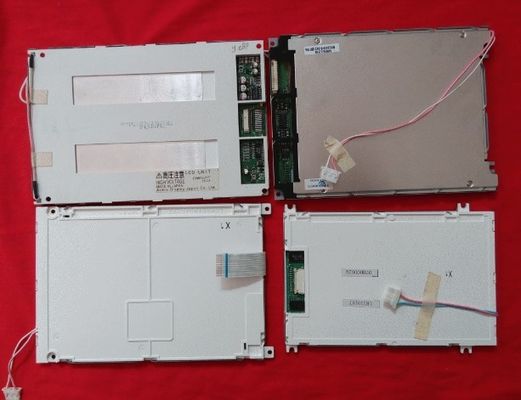

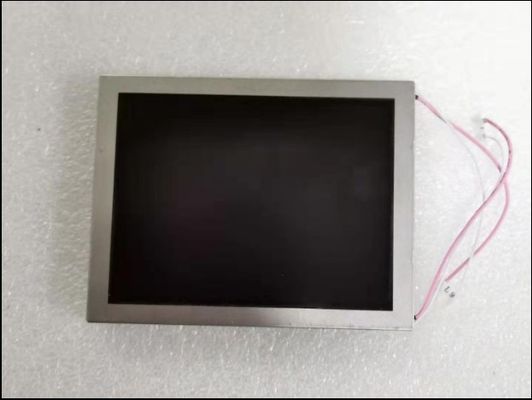

Product Details:
|
| MODEL NUMBER: | NL3224BC35-22 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 5.5INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 750CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C | ||
| High Light: | NLT 5.5" NEC TFT Display,NEC TFT Display 750CD/M2,CCFL TTL NEC TFT Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL3224BC35-22 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 70 °C | -30 ~ 80 °C | 3.0G (29.4 m/s²) |
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.116×0.348 mm | 0.348×0.348 mm [72PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 111.36×83.52 mm | 117.9×90.2 mm | 134×104.5 mm | 12.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 215/225g (Typ./Max.) | - | Clear, Hard coating (2H), Antireflection | ||
| Holes & Brackets : | Rear mounting holes (4-M3) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 750 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 55/55/50/40 (Typ.)(CR≥10) | 5/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7075K | 262K (6-bit) | X:0.300; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 74% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 56% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.35 (Typ./Max.)(5 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.8W (Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 40K(Typ.) | 2 pcs | Straight | Replaceable (55LHS11) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 350V (Typ.) | 4.5/5.0/5.5mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 39/43/47KHz (Min./Typ./Max.) | 550/780V (Max.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 95/70mA (Typ.)(ICC) | 590mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Kyocera Elco | 08-6260-033-340-829+ | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020D | |
