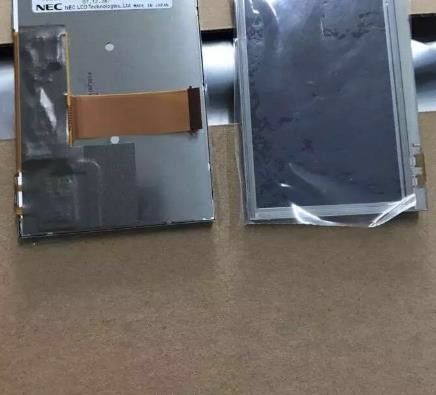

Product Details:
|
| MODEL NUMBER: | NL8048HL11-01A | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 4.1INCH | RESOLUTION: | 800×480RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | WLED TTL TFT LCD Screen,LCM 800×480 TFT LCD Screen,400CD/M2 NEC TFT Panel |
||
| Basic Info : | Panel Brand | Panel Model | NL8048HL11-01A | |
|---|---|---|---|---|
| Diagonal Size | 4.1" | Application | ||
| Panel Type | LTPS TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) | ||
| Specific Features : |
|
|||
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.037×0.111 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.111×0.111 mm (H×V) [228PPI] | |
| Mechanical Size : | Display Area | 88.8×53.28 mm (H×V) | Bezel Area | 91.2×55.68 mm (H×V) |
| Outline Dim. | 99.6×69.5 mm (H×V) | Outline Depth | 4.0/6.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 55/58g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 8/17 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.340; Wy:0.340 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 5193K | White Uniformity | 1.18/1.43 (Typ./Max.)(9 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 769mW (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 10K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 21.6/23.8V (Typ./Max.) | Current Input | 14/15mA (Typ./Max.) | ||
| Consumption | 604mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | CMOS (1 ch, 8-bit) + SPI | Logic Voltage | 0≤VIL≤0.2VCCIO; 0.8VCCIO≤VIH≤VCCIO | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.0/3.0V (Typ.)(VCC/VCCIO) | Current Input | 55/0.06mA (Typ.)(ICC/ICCIO) | ||
| Consumption | 165mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 51 pins | 1 pcs | ||||
