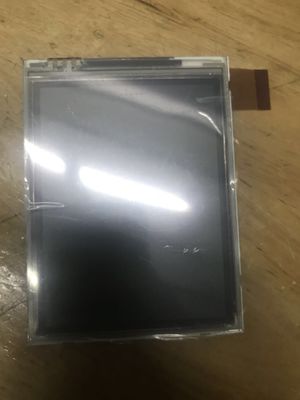

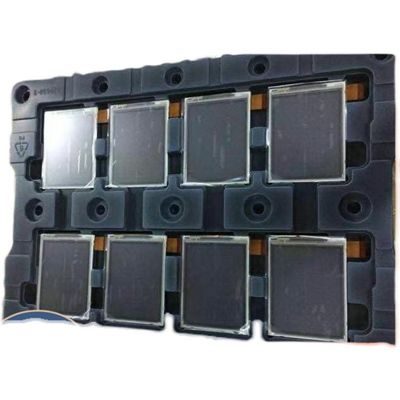

Product Details:
|
| MODEL NUMBER: | NL2432HC22-42B | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 3.5INCH | RESOLUTION: | 240×320RGB |
| BRIGHTNESS: | 200CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | 6 Bit NEC TFT Display,40% NTSC NEC TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL2432HC22-42B | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 30/30/30/35 (Typ.)(CR≥10) | 7/23 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transflective | 130 : 1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| White Variation : | 1.43/1.67 (Typ./Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 8/15% (Min./Typ.) | |
| Panel Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×320 [QVGA] | RGB Vertical Stripe | 0.2235×0.2235 [113PPI] | 0.0745×0.2235 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 53.64(H) × 71.52(V) | 57.64(H) × 76.52(V) | 63.5(H) × 85(V) | 4.2/7.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:4 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| Without touch controller | 1 point | - | 4-wire Resistive Touch | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 43.0/45.0g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 19.2/21.0V (Typ./Max.) | 20/22mA (Typ./Max.) | 384mA (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.0V (Typ.) | 16.5/26mA (Typ./Max.) | 50mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) + SPI | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 45 pins | 1 pcs | ||||
