Product Details:
|

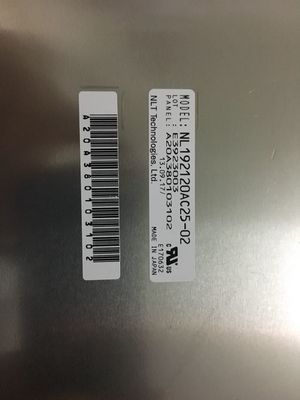

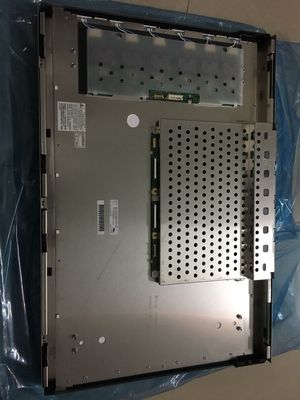

| MODEL NUMBER: | NL192120AC25-02 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 22.5INCH | RESOLUTION: | 1920×1200RGB |
| BRIGHTNESS: | 420CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | 6 Bit NEC TFT Display,40% NTSC NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL192120AC25-02 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 22.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS |
| Basic Information : | Luminance | 420 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6/6 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (10-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 94% | sRGB | 99% coverage |
| Adobe RGB | 97% coverage | DCI-P3 | 87% coverage | |
| Rec.2020 | 70% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.084×0.252 mm | Pixel Pitch(W×H) | 0.252×0.252 mm [100PPI] | |
| Physical Size : | Active Viewing | 483.84(W)×302.4(H) mm | Overall Dim. | 542(W)×362(H) mm |
| Bezel Opening | 489.2(W)×306.6(H) mm | Overall Depth | 55.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (7-M3) | |||
| Other Detail : | Mass | 3.45/3.65Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 0.8/1.5A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (4 ch, 10-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| JAE | FI-RE41S-HF | 1 pcs | 0.5 mm | 41 pins | ||
| JAE | IL-Z-12PL1-SMTYE | 1 pcs | 1.25 mm | 12 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 12 pcs | Life | 45K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF3Z-10P-2H | 1 pcs | 2.0 mm | 10 pins | ||
| JAE | IL-Z-9PL-SMTYE | 1 pcs | 1.25 mm | 9 pins | ||

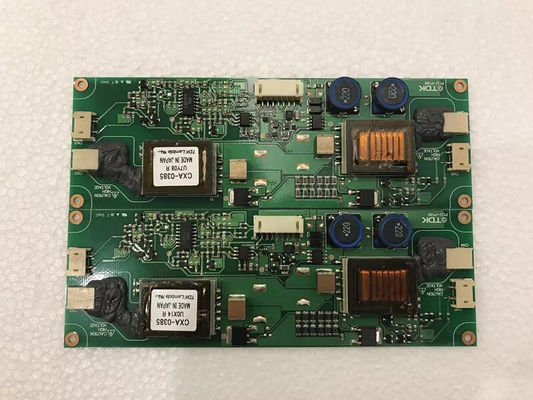

| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Input Current | 4.5/5.0A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
