NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI

NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI
NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI

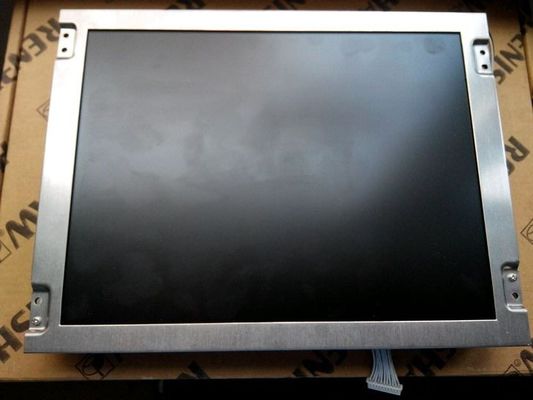

Large Image :  NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL204153BM21-01A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

NL204153BM21-01A NLT 21.3INCH 650CD/M2 LCM 2048×1536 2048×1536RGB CCFL LVDS Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DI

Description
MODEL NUMBER: NL204153BM21-01A BRAND: NEC
SIZE: 21.3INCH RESOLUTION: 2048×1536RGB
BRIGHTNESS: 650CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

6 Bit NEC TFT Display

,

40% NTSC NEC TFT Display



NEC NL204153BM21-01A Application Details

Basic Detail :
Manufacturer

Model Name
NL204153BM21-01A
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
21.3 inch
Designed For

Maximum Ratings :
OP Temperature
0 ~ 55 °C
ST Temperature
-20 ~ 60 °C
RoHS

Vibration Level
1.2G (11.76 m/s²)



NEC NL204153BM21-01A Optical Details

Basic Detail :
Luminance
650 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
17/18 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
SA-SFT, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.280; Wy:0.304
Support Color
Grayscale (8-bit)
Color Temperature
9312K
White Variation
1.20/1.30 (Typ./Max.)(5 points)



NEC NL204153BM21-01A Mechanical Details

Pixel Features :
Number of Pixel
2048(LCR)×1536, QXGA
Arrangement
LCR Vertical Stripe
Dot Pitch(W×H)
0.0705×0.2115 mm
Pixel Pitch(W×H)
0.2115×0.2115 mm [120PPI]
Physical Size :
Active Viewing
433.152(W)×324.864(H) mm
Overall Dim.
457(W)×350(H) mm
Bezel Opening
438.2(W)×330.0(H) mm
Overall Depth
22.0/25.3 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
3.80/4.00Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (2H)



NEC NL204153BM21-01A Interface Detail

Signal Electrical :
Input Current
0.6/1.1A (Typ./Max.)
Input Voltage
12.0V (Typ.)
Consumption
7.2W (Typ.)
Signal Interface
LVDS (4 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-WE41P-HF
1.25 mm
41 pins
1 pcs

JAE
FI-WE31P-HF
1.25 mm
31 pins
1 pcs

JAE
IL-Z-8PL-SMTY
1.25 mm
8 pins
1 pcs




NEC NL204153BM21-01A Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
6 pcs
Position
Edge light type (Top and Bottom)
Exchange
Replaceable (213LHS11)
Lamp Shape
Straight
Lamp Life
-
Lamp Electrical :
Input Voltage
750V (Typ.)
Input Current
3.0/6.0/7.0mA (Min./Typ./Max.)
Frequency
50/58/60KHz (Min./Typ./Max.)
Turn-on Voltage
1220/1460V (Min.)(Ta=+25/0℃)
Consumption
27W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHSR-02VS-1
3.5 mm
2 pins
6 pcs
BLL-2PINS-HL
Backlight Driver :
No
