Product Details:
|

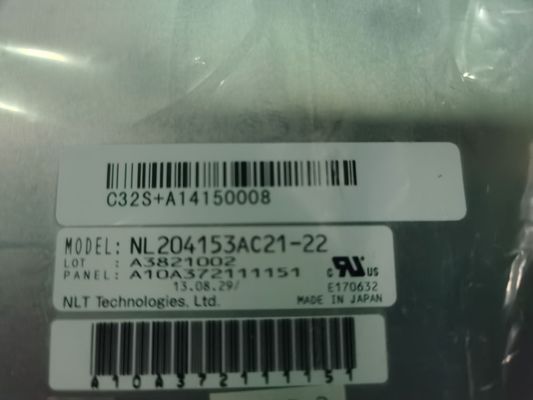

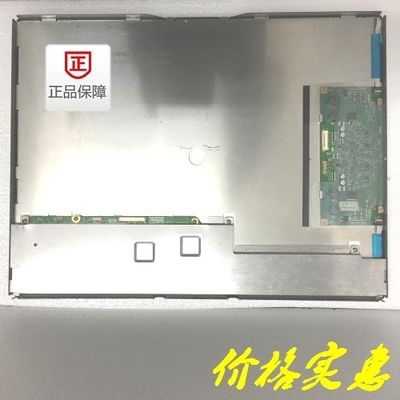

| MODEL NUMBER: | NL204153AC21-22 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 21.3INCH | RESOLUTION: | 2048×1536RGB |
| BRIGHTNESS: | 800CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C | ||
| High Light: | 6 Bit NEC TFT Display,40% NTSC NEC TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL204153AC21-22 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Screen Size : | 21.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2048(RGB)×1536, QXGA | RGB Vertical Stripe | 0.0705×0.2115 mm | 0.2115×0.2115 mm [120PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 433.152×324.864 mm | 438.2×330.0 mm | 457×350 mm | 21.5/23.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.70/2.98Kgs (Typ./Max.) | - | Antiglare, Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 800 cd/m² (Typ.) | UA-SFT, Normally Black | 1400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 88/88/88/88 (Typ.)(CR≥10) | 20/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7502K | 1.07B (10-bit) | X:0.299; Y:0.315 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 98% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 590/980mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (4 ch, 10-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| JAE | FI-RE41S-HF | 1 pcs | 41 pins | 0.5 mm | ||
| JAE | IL-Z-12PL-SMTYE | 1 pcs | 12 pins | 1.25 mm | ||
