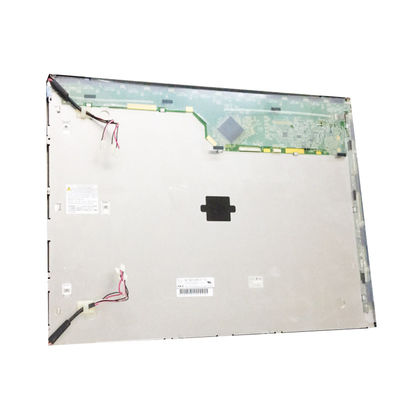

Product Details:
|
| MODEL NUMBER: | NL160120BC27-19 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 21.3INCH | RESOLUTION: | 1600×1200RGB |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C | ||
| High Light: | LVDS TFT LCD Display,LCD NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL160120BC27-19 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 21.3 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 55 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 11/9 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.15/1.30 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 96% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1600(RGB)×1200 [UXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 432(W)×324(H) mm | Overall Dim. | 457(W)×350(H) mm |
| Bezel Opening | 438.2(W)×330.0(H) mm | Overall Depth | 25.0±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 3.75/4.00Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 310/700mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19G-30P-1H | 1 pcs | 1.0 mm | 30 pins | ||
| JST | SM10B-SRSS-TB(LF)(SN) | 1 pcs | 1.0 mm | 10 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6 pcs | Life | - | |
| Lamp Electrical : | Input Current | 3.0/6.0/7.0mA (Min./Typ./Max.) | Input Voltage | 750V (Typ.) | ||
| Frequency | 50/56/60KHz (Min./Typ./Max.) | Turn-on Voltage | 1220/1460V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 6 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
