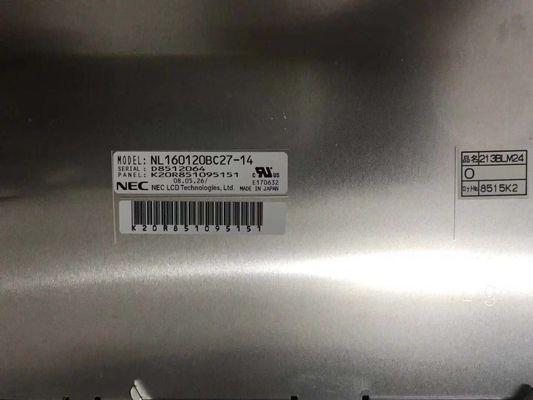

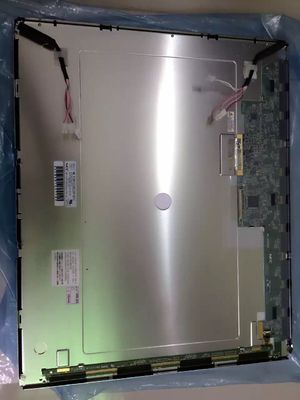

NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS

NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS
NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS

Large Image :  NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL160120BC27-14
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

NL160120BC27-14 NLT 21.3INCH 250CD/M2 LCM 1600×1200 1600×1200RGB CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DIS

Description
MODEL NUMBER: NL160120BC27-14 BRAND: NEC
SIZE: 21.3INCH RESOLUTION: 1600×1200RGB
BRIGHTNESS: 250CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C
High Light:

LVDS TFT LCD Display

,

LCD NEC TFT Display

NEC NL160120BC27-14 Application Details

Basic Info :
Panel Brand

Panel Model
NL160120BC27-14
Diagonal Size
21.3"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
0 ~ 55 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

Vibration Rating
1.2G (11.76 m/s²)
Specific Features :

Remarks :
Adjustable gamma characteristics by using built-in 10-bit LUT (look up table)



NEC NL160120BC27-14 Mechanical Details

Pixel Features :
Pixel Format
1600(RGB)×1200, UXGA
Dot Pitch
0.090×0.270 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.270×0.270 mm (H×V) [94PPI]
Mechanical Size :
Display Area
432×324 mm (H×V)
Bezel Area
438.2×330.0 mm (H×V)
Outline Dim.
457×350 mm (H×V)
Outline Depth
25.0±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Normal bezel
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
3.75/4.00Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (2H)



NEC NL160120BC27-14 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
550:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
SA-SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
11/9 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.15/1.30 (Typ./Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
74%
sRGB
96% coverage
Adobe RGB
77% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



NEC NL160120BC27-14 Interface Detail

Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
12.0V (Typ.)
Current Input
310/700mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19G-30P-1H
1.0 mm
30 pins
1 pcs

JST
SM10B-SRSS-TB
1.0 mm
10 pins
1 pcs





FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
