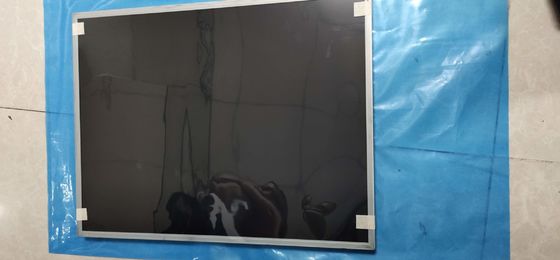

Product Details:
|
MODEL NUMBER: | NL160120AC27-37 | BRAND: | NEC |
---|---|---|---|
SIZE: | 21.3INCH | RESOLUTION: | 1600×1200RGB |
BRIGHTNESS: | 900CD/M2 | Lamp Type: | WLED |
TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C | ||
High Light: | LVDS TFT LCD Display,LCD NEC TFT Display |
Basic Information : | Brand Name | Model Name | Type | Model Alias |
---|---|---|---|---|
NL160120AC27-37 | a-Si TFT-LCD , LCM | - | ||
Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
0 ~ 60 °C | -20 ~ 60 °C |
Screen Size : | 21.3" | |||
---|---|---|---|---|
Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
432×324 mm | 438.2×330.0 mm | 457×350 mm | 21.5±0.5 mm | |
Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
Flat Rectangle | 4:3 | Landscape type | ||
Other Spec : | Mass | Panel Cover | Surface Treatment | |
2.70/2.98Kgs (Typ./Max.) | - | Antiglare, Hard coating (2H) | ||
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Basic Information : | Luminance | Work Mode | Contrast Ratio |
---|---|---|---|
900 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
Good View at | Viewing Angle | Response Time | |
Symmetry | 88/88/88/88 (Typ.)(CR≥10) | 20/20 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
7502K | 16.7M (8-bit) | X:0.299; Y:0.315 | |
1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
72% | 98% | 75% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
White Uniformity : | 1.25 (Max.)(9 points) | ||
Performance : | 3D Technology | Outdoor Visibility | Reflectance |
- | Sunlight Readable | - |
Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
---|---|---|---|---|---|---|
WLED | Edge light type | 70K(Typ.) | - | - | - | |
Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
With LED Driver | Connector | - | ||||
Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
HRS | DF3Z-10P-2H | 1 pcs | 10 pins | 2.0 mm | ||
JAE | IL-Z-9PL-SMTYE | 1 pcs | 9 pins | 1.25 mm | ||
WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
12.0V (Typ.) | 4.2/5.8A (Typ./Max.) | - |
Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
---|---|---|---|---|---|---|
12.0V (Typ.) | 500/700mA (Typ./Max.) | - | ||||
Interface Features : | Signal Type | Physical Type | Interface Position | |||
LVDS (2 ch, 8-bit) | Connector | - | ||||
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
HRS | DF19G-30P-1H(56) | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-170B |
