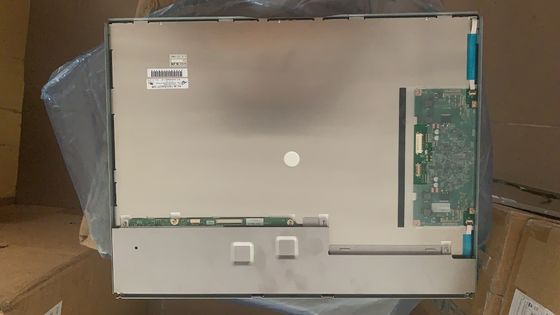

Product Details:
|

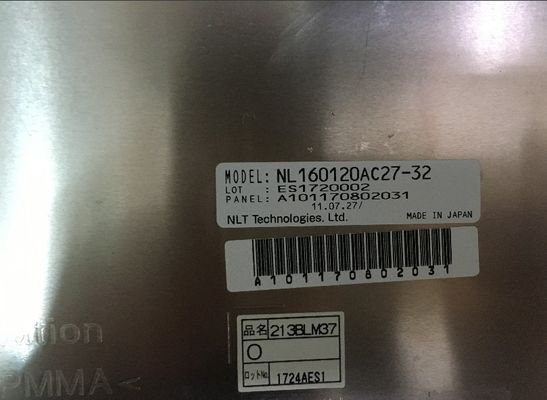

| MODEL NUMBER: | NL160120AC27-32 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 21.3INCH | RESOLUTION: | 1600×1200RGB |
| BRIGHTNESS: | 900CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C | ||
| High Light: | LVDS TFT LCD Display,LCD NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL160120AC27-32 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | NL160120AC27-40 | |
| Panel Size | 21.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS | ||
| Features : |
|
|||
| Basic Information : | Luminance | 900 cd/m² (Typ.) | Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7502K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 98% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 1600(RGB)×1200 [UXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 432(W)×324(H) mm | Overall Dim. | 457(W)×350(H) mm |
| Bezel Opening | 438.2(W)×330.0(H) mm | Overall Depth | 21.5/23.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 2.80/2.98Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 300/400mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19G-30P-1H(56) | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-170B | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
