NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

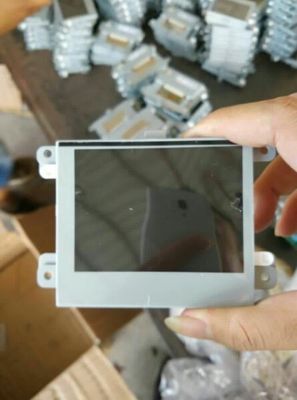

Large Image :  NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL2432HC17-10B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 1000PCS
Contact Now

NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: NL2432HC17-10B BRAND: NEC
SIZE: 2.7INCH RESOLUTION: 240×320RGB
BRIGHTNESS: 500CD/M2 Lamp Type: WLED
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:

LVDS TFT LCD Display

,

LCD NEC TFT Display



NEC NL2432HC17-10B Application Details

Basic Detail :
Manufacturer

Model Name
NL2432HC17-10B
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
2.7 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
2.0G (19.6 m/s²)



NEC NL2432HC17-10B Optical Details

Basic Detail :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
8/15 (Typ.)(Tr/Td) ms
Viewing Angle
50/50/60/30 (Typ.)(CR≥10)
Operating Mode
TN, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Support Color
262K (6-bit)
Color Temperature
6066K
White Variation
1.18/1.43 (Typ./Max.)(9 points)



NEC NL2432HC17-10B Mechanical Details

Pixel Features :
Number of Pixel
240(RGB)×320, QVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.057×0.171 mm
Pixel Pitch(W×H)
0.171×0.171 mm [148PPI]
Physical Size :
Active Viewing
41.04(W)×54.72(H) mm
Overall Dim.
50.54(W)×68.62(H) mm
Bezel Opening
43.44(W)×57.12(H) mm
Overall Depth
3.55/3.85 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
3:4
Shape Style

Touchscreen :
TP Controller
Without touch controller
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Other Detail :
Mass
25/27g (Typ./Max.)
Surface
Clear, Hard coating (3H)



NEC NL2432HC17-10B Electronics Details

Refresh Rate :
60Hz Reverse Scan :
No
Total Consumption :
324mW (Typ.)
Time Controller (T-CON) :
Embedded T-CON



NEC NL2432HC17-10B Interface Detail

Signal Electrical :
Input Current
12/20mA (Typ./max.)
Input Voltage
3.0V (Typ.)
Consumption
36mW (Typ.)
Signal Interface
CMOS (1 ch, 6-bit) + SPI
Logic Voltage :
0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.3 mm
45 pins
1 pcs




NEC NL2432HC17-10B Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
-
Exchange
-
Lamp Shape
-
Lamp Life
39K(Min.) (Hours)
Lamp Electrical :
Input Voltage
16/17.5V (Typ./Max.)
Input Current
18/22mA (Typ./Max.)
Consumption
288mW (Typ.)
Backlight Driver :
No

FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

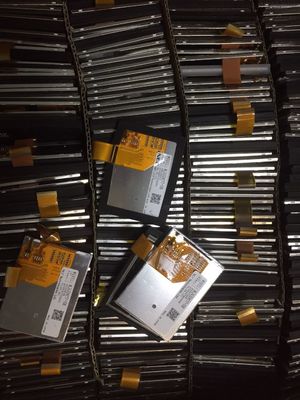

NL2432HC17-10B NLT 2.7INCH 500CD/M2 LCM 240×320 240×320RGB WLED TTL Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 1
