Product Details:
|

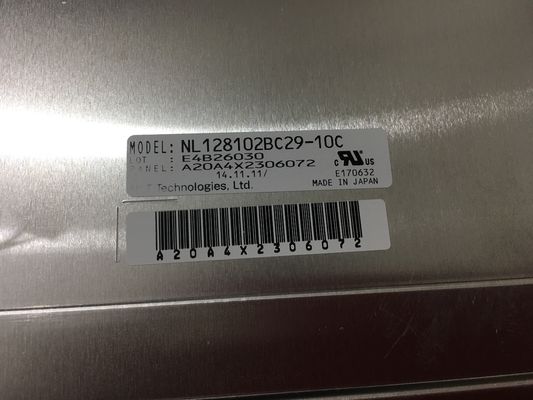

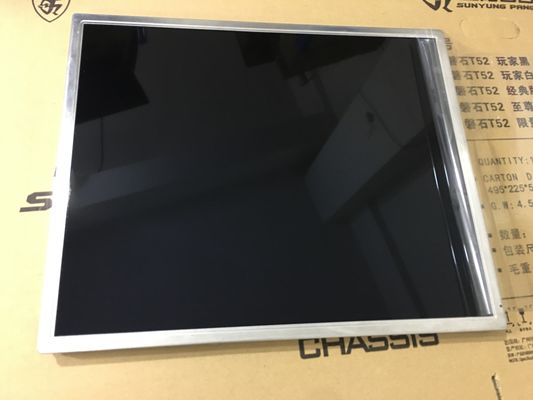

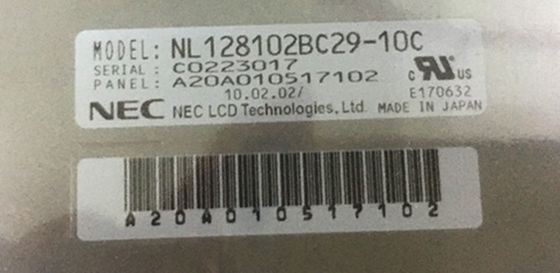

| MODEL NUMBER: | NL128102BC29-10C | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 19INCH | RESOLUTION: | 1280×1024RGB |
| BRIGHTNESS: | 290CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C | ||
| High Light: | LVDS TFT LCD Display,LCD NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL128102BC29-10C | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 19.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 55 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS |
| Basic Information : | Luminance | 290 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 10/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7435K | White Uniformity | 1.10/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 96% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] | |
| Physical Size : | Active Viewing | 376.32(W)×301.056(H) mm | Overall Dim. | 404.2(W)×330(H) mm |
| Bezel Opening | - | Overall Depth | 22.0/24.1 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 2.60/2.75Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 500/800mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-X30SSL-HF | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160H | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.5/6.0/7.0mA (Min./Typ./Max.) | Input Voltage | 650V (Typ.) | ||
| Frequency | 40/48/55KHz (Min./Typ./Max.) | Turn-on Voltage | 1350/1550V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 6 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
