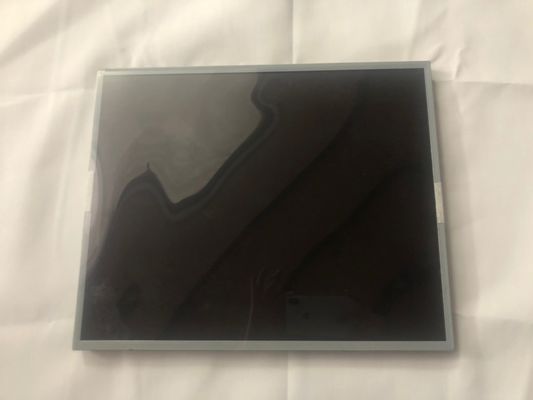

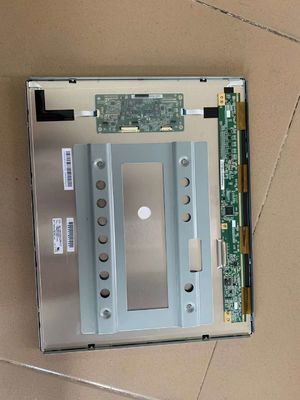

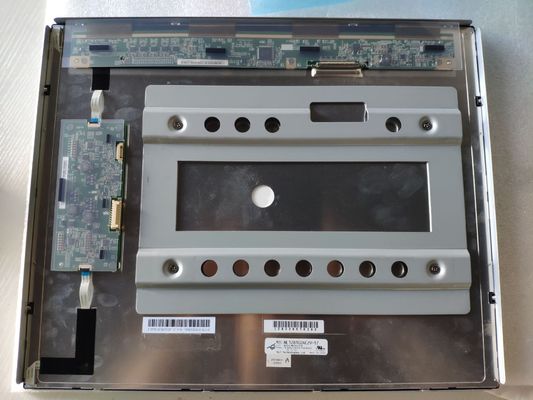

Product Details:
|
MODEL NUMBER: | NL128102AC29-17G | BRAND: | NEC |
---|---|---|---|
SIZE: | 19INCH | RESOLUTION: | 1280×1024RGB |
BRIGHTNESS: | 800CD/M2 | Lamp Type: | WLED |
TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
---|---|---|---|---|
NL128102AC29-17G | a-Si TFT-LCD , LCM | - | ||
Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
-20 ~ 70 °C | -30 ~ 80 °C | - | ||
Used For : | ||||
Specific Features : |
|
|||
Remarks : | without RF |
Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
---|---|---|---|
800 (Typ.) | 88/88/88/88 (Typ.)(CR≥10) | 14/11 (Typ.)(Tr+Td) | |
Best View on | Display Mode | Contrast Ratio | |
Symmetry | UA-SFT, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
7435K | 16.7M (8-bit) | X:0.300; Y:0.315 | |
White Variation : | 1.10/1.25 (Typ./Max.)(5 points) | ||
Performance : | 3D Tech | Sunlight Visibility | Reflectance |
- | Sunlight Readable | - |
Panel Size : | 19.0" | |||
---|---|---|---|---|
Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
1280(RGB)×1024 [SXGA] | RGB Vertical Stripe | 0.294×0.294 [86PPI] | 0.098×0.294 | |
Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
376.32(H) × 301.056(V) | 380.32(H) × 305.06(V) | 396(H) × 324(V) | 18.0±0.5 mm | |
Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
Flat Rectangle | Landscape type | 5:4 (H:V) | ||
Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Weight | Panel Cover | Treatment | |
2.10/2.31Kgs (Typ./Max.) | - | Clear |
Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
---|---|---|---|---|---|---|
5.0V (Typ.) | 700/900mA (Typ./Max.) | - | ||||
Interface Features : | Position | Signal | Type | |||
LVDS (2 ch, 8-bit) | Connector | |||||
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
JAE | FI-X30SSL-HF | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160H |
