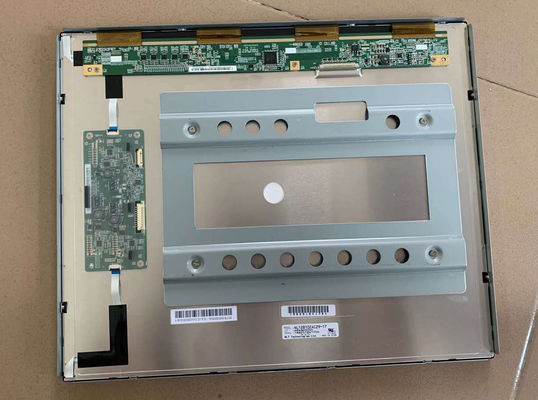

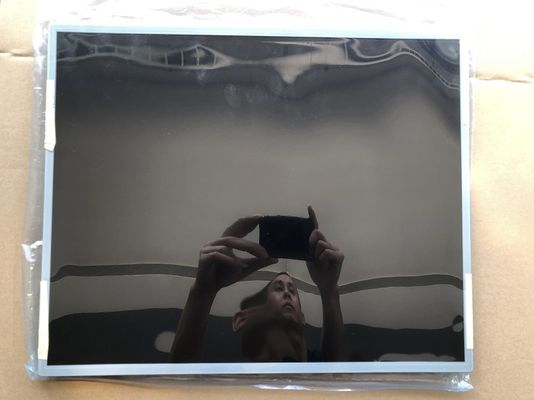

Product Details:
|

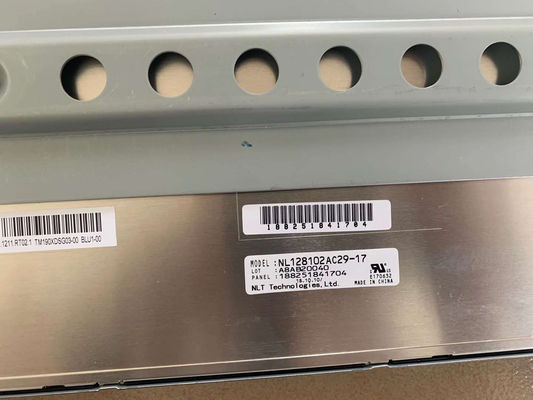

| MODEL NUMBER: | NL128102AC29-17 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 19INCH | RESOLUTION: | 1280×1024RGB |
| BRIGHTNESS: | 800CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL128102AC29-17 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 19.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS |
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7435K | White Uniformity | 1.10/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] | |
| Physical Size : | Active Viewing | 376.32(W)×301.056(H) mm | Overall Dim. | 396(W)×324(H) mm |
| Bezel Opening | 380.32(W)×305.06(H) mm | Overall Depth | 18.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 2.10/2.31Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 700/900mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-X30SSL-HF | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160H | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 94K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF3Z-10P-2H | 1 pcs | 2.0 mm | 10 pins | ||
| molex | 53261-0971 | 1 pcs | 1.25 mm | 9 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 3.46/4.02A (Typ./Max.) | Input Voltage | 12.0±1.2V | ||
