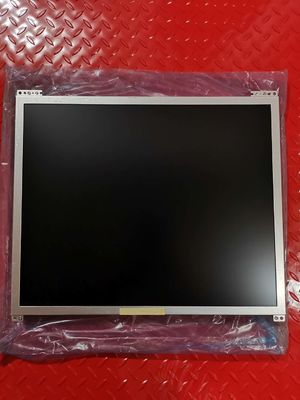

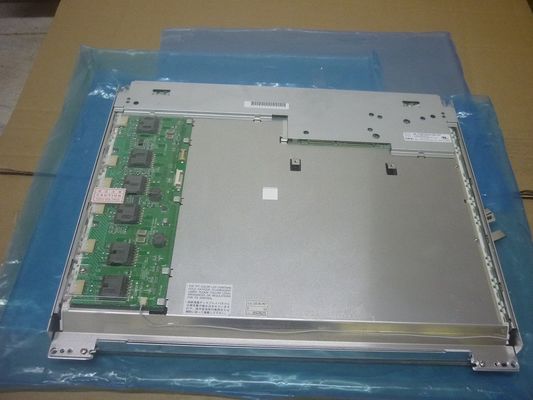

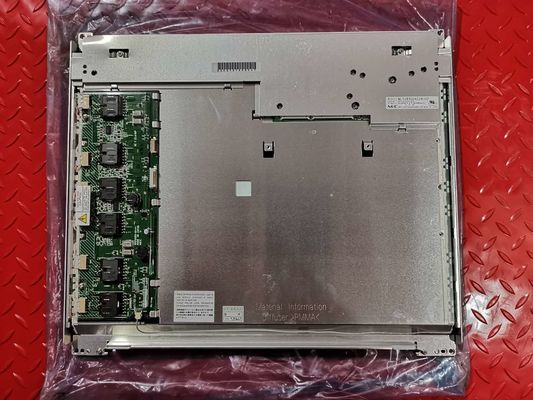

Product Details:
|

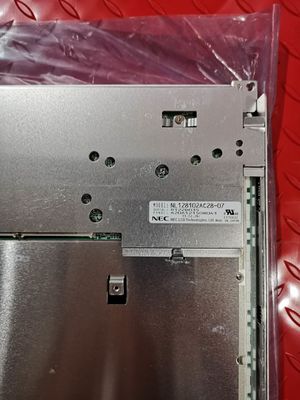

| MODEL NUMBER: | NL128102AC28-07 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 18.1INCH | RESOLUTION: | 1280×1024RGB |
| BRIGHTNESS: | 240CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL128102AC28-07 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 55 °C | -20 ~ 60 °C |
| Screen Size : | 18.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.0935×0.2805 mm | 0.2805×0.2805 mm [90PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 359.04×287.232 mm | 364.0×292.2 mm | 389×317.2 mm | 30.3±1.0 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.65/1.75Kgs (Typ./Max.) | - | Hard coating (2H), Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 240 cd/m² (Typ.) | A-SFT, Normally Black, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 15/14 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7435K | 16.7M (8-bit) | X:0.300; Y:0.315 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 83% | 64% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 46% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.10/1.30 (Typ./Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | - | 12 pcs | Straight | Replaceable (181LHS07) | |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| With Inverter | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF3-8P-2H | 1 pcs | 8 pins | 2.0 mm | ||
| JAE | IL-Z-9PL1-SMTY | 1 pcs | 9 pins | 1.25 mm | ||
| CCFL Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 2.91/3.5A (Typ./Max.) | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 315/600mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 55176-3061 | 1 pcs | 30 pins | 1.25 mm | LVDS-50P2C8B-010A | |
| molex | 55176-2061 | 1 pcs | 20 pins | 1.25 mm | ||
