Product Details:
|
| MODEL NUMBER: | NL192108BC18-06F | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 15.6INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 1500CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C | ||
| Highlight: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||

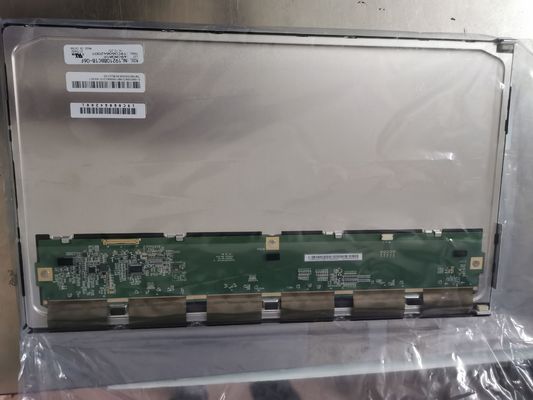

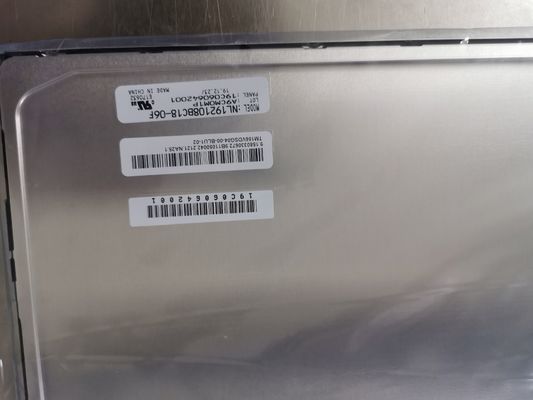

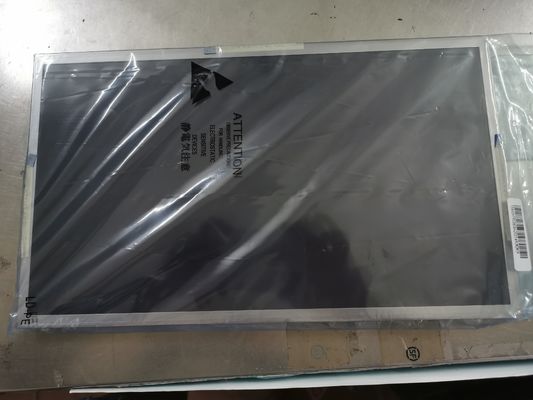

The NL192108BC18-06F is a 15.6 inch diagonal a-Si TFT-LCD display panel product from NLT Technologies, Ltd. (hereafter called NLT), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.2G (11.76 m/s²).
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NL192108BC18-06F | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -40 ~ 85 °C | - | ||
| Designed For : |
|
|||
| Specific Features : | ||||
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.16×193.59 mm | 347.55×196.75 mm | 363.8×215.9 mm | 15.7±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.05/1.15Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1500 cd/m² (Typ.) | UA-SFT, Normally Black, Transmissive | 750:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 15/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 41% | 58% | 43% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 43% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 580/1000mA (Typ./Max.) | 3.3V (Typ.) | 1.91W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | eDP (2 Lanes), HBR1 (2.7G/lane) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-02 | 1 pcs | 0.5 mm | 40 pins | ||
