NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP

NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP

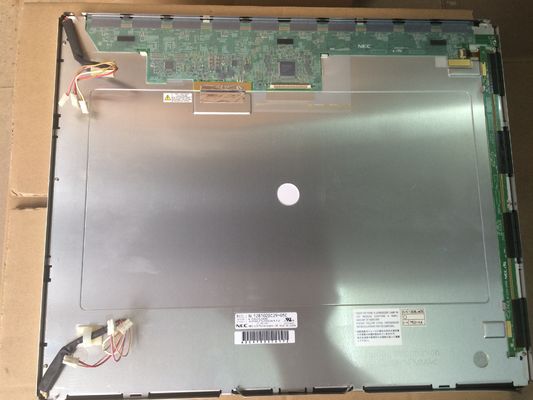

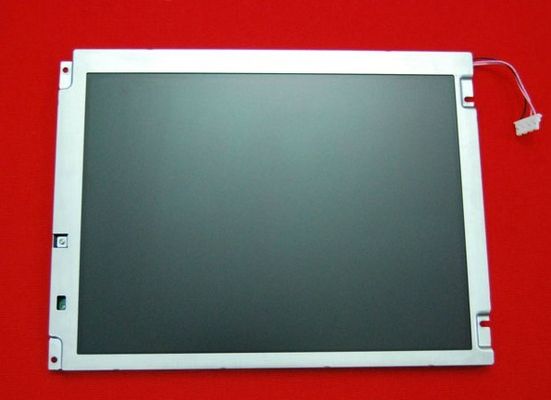

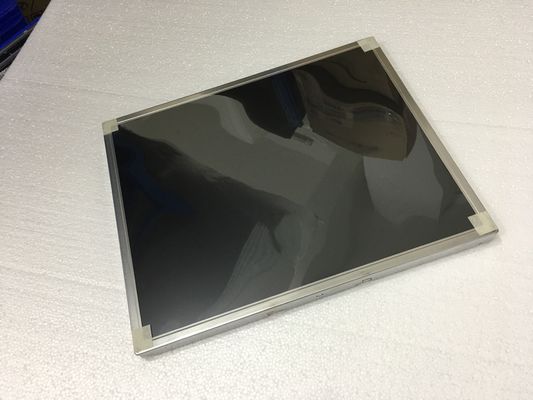

NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP

Large Image :  NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL12876BC26-28
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 120USD
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 350PCS
Contact Now

NL12876BC26-28 NLT 15.3INCH 330CD/M2 LCM 1280×768 1280×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISP

Description
MODEL NUMBER: NL12876BC26-28 BRAND: NEC
SIZE: 15.3INCH RESOLUTION: 1280×768RGB
BRIGHTNESS: 330CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
High Light:

NEC TFT Display 40% NTSC

,

XGA 85PPI NEC TFT Display

NEC NL12876BC26-28 Application Details

Basic Info :
Panel Brand

Panel Model
NL12876BC26-28
Diagonal Size
15.3"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 70 °C
Storage Temp.
-20 ~ 80 °C
RoHS State

Vibration Rating
1.2G (11.76 m/s²)
Specific Features :
  •



NEC NL12876BC26-28 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×768, WXGA
Dot Pitch
0.087×0.261 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.261×0.261 mm (H×V) [97PPI]
Mechanical Size :
Display Area
334.08×200.45 mm (H×V)
Bezel Area
336.2×202.8 mm (H×V)
Outline Dim.
358×226 mm (H×V)
Outline Depth
12.7/16.8 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.27/1.40Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



NEC NL12876BC26-28 Optical Details

Basic Information :
Brightness
330 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
UA-SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14/11 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.10/1.30 (Typ./Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
74%
sRGB
98% coverage
Adobe RGB
77% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



NEC NL12876BC26-28 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
550/800mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-020C

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
