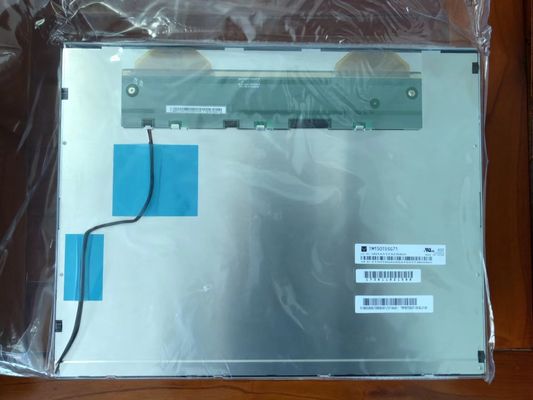

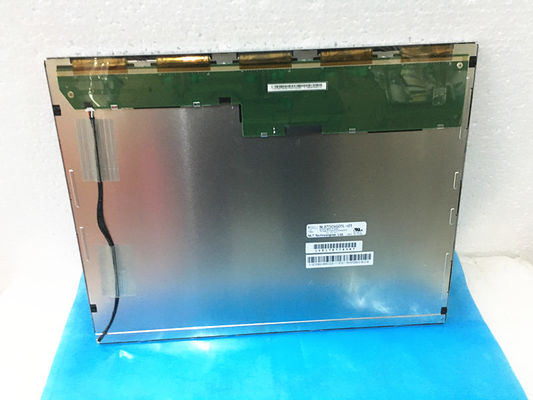

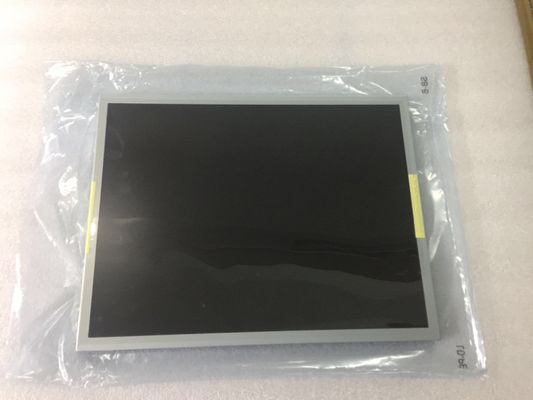

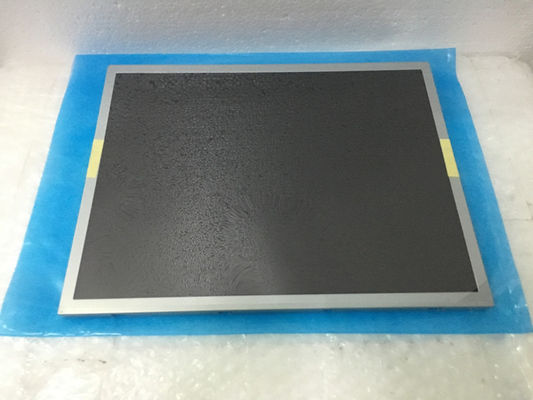

Product Details:
|
| MODEL NUMBER: | NLB150XG02L-02 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Information : | Brand | Model | NLB150XG02L-02 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 1.2G (11.76 m/s²) | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 11.8±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 930/980g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 3/5 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 62% | sRGB | 84% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 400/780mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| P-TWO | 185083-20121 | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-080A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
