NLB150XG02L-01 NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA

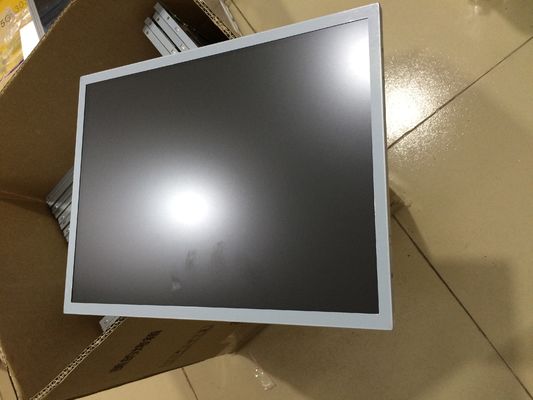

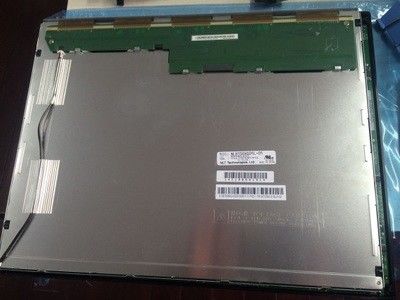

Large Image : NLB150XG02L-01 NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NLB150XG02L-01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	120USD

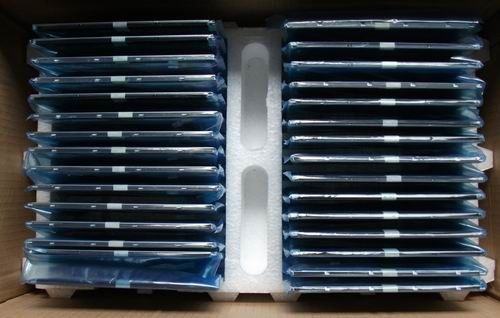

Packaging Details:	STANDARD PACKING
Delivery Time:	2-3 DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	500PCS

Contact Now

NLB150XG02L-01 NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA

Description

MODEL NUMBER:	NLB150XG02L-01	BRAND:	NEC
SIZE:	15INCH	RESOLUTION:	1024×768RGB
BRIGHTNESS:	400CD/M2	Lamp Type:	WLED
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	NEC TFT Display 40% NTSC , XGA 85PPI NEC TFT Display

NLT NLB150XG02L-01 Application Details

Basic Info :	Panel Brand Panel Model NLB150XG02L-01 Diagonal Size 15.0" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C RoHS State Vibration Rating 1.2G (11.76 m/s²)

NLT NLB150XG02L-01 Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area 304.128×228.096 mm (H×V) Bezel Area 307.4×231.3 mm (H×V) Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 11.8±0.3 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight 930/980g (Typ./Max.) Surface Antiglare, Hard coating (3H)

NLT NLB150XG02L-01 Optical Details

Basic Information :	Brightness 400 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction - Response Time 3/5 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6485K Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 62% sRGB 84% coverage Adobe RGB 65% coverage DCI-P3 65% coverage Rec.2020 46% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

NLT NLB150XG02L-01 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 50K(Typ.) (Hours) Replacement Replaceable (150LHS204) Lamp Shape - Position Edge light type (Bottom side)
Interface Features :	Type Connector Position - Lamp Driver With LED Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration STM MSB24038P5 1.25 mm 5 pins 1 pcs
Driver Electrical :	Voltage Input 10.8/12.0/12.6V (Min./Typ./Max.) Current Input 480/650mA (Typ./Max.)

NLT NLB150XG02L-01 Interface Detail

Signal Systerm :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 400/780mA (Typ./Max.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration P-TWO 185083-20121 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-080A
