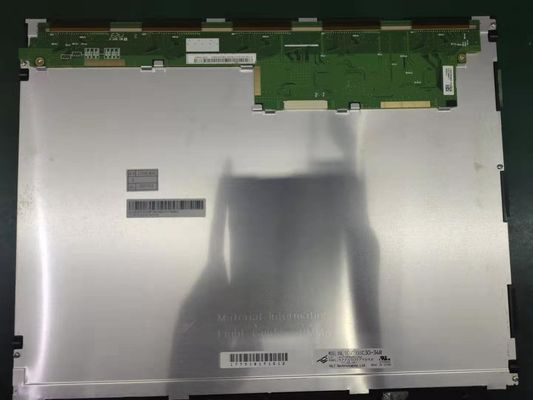

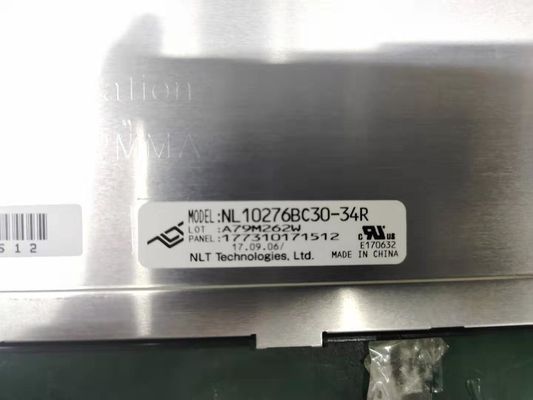

NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL

NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL
NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL

Large Image :  NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL10276BC30-34R
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 120USD
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL

Description
MODEL NUMBER: NL10276BC30-34R BRAND: NEC
SIZE: 15INCH RESOLUTION: 1024×768RGB
BRIGHTNESS: 400CD/M2 Lamp Type: WLED
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

NEC TFT Display 40% NTSC

,

XGA 85PPI NEC TFT Display

NEC NL10276BC30-34R Application Details

Basic Information :
Brand

Model
NL10276BC30-34R
Type
a-Si TFT-LCD , LCM
Used For
  • NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL 0
Screen Size
15.0 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

1.2G (11.76 m/s²)Vibration



NEC NL10276BC30-34R Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
307.4(H) × 231.3(V)
Outline Dim.(mm)
326.5(H) × 253.5(V)
Depth(mm)
11.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
0.97/1.05Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



NEC NL10276BC30-34R Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
3/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.20/1.35 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





NEC NL10276BC30-34R Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
500/700mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C6B-082A



NEC NL10276BC30-34R Backlight Details

Backlight Features :
Type
WLED
Quantity
6 strings
Position
Edge light type (Bottom side)
Replacement
Replaceable (150LHS36)
Shape
6 strings
Life Time
70K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
23.9/27.0/30.6V (Min./Typ./Max.)
Current Supply
50/55mA (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM12B-SRSS-TB
1.0 mm
12 pins
1 pcs
BLE-12PINS-ACACACACACAC
Backlight Driver :
Optional

FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



NL10276BC30-34R NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPL 1
