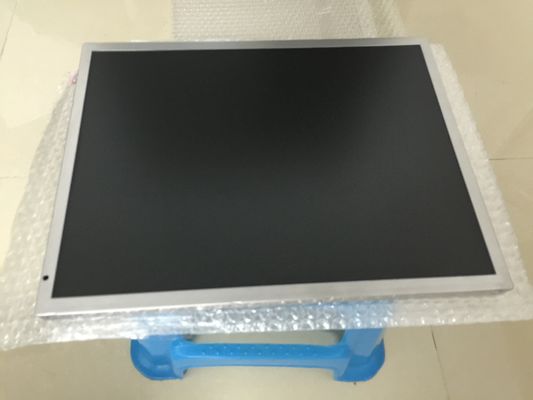

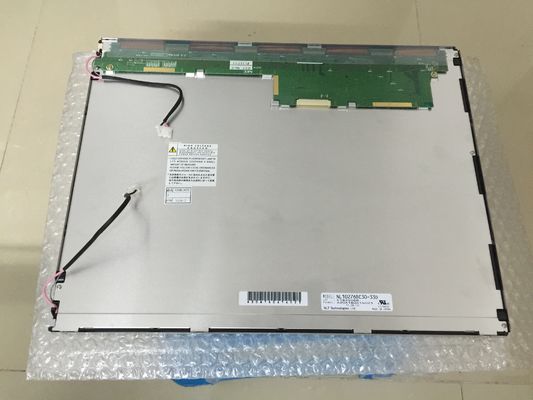

NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY

NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY
NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY

Large Image :  NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL10276BC30-33
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 50USD

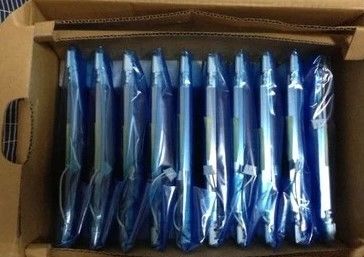

Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

NL10276BC30-33 NLT 15INCH 350CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: 0 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: NL10276BC30-33 BRAND: NEC
SIZE: 15INCH RESOLUTION: 1024×768RGB
BRIGHTNESS: 350CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
High Light:

NEC TFT Display 40% NTSC

,

XGA 85PPI NEC TFT Display

NEC NL10276BC30-33 Application Details

Basic Information :
Brand

Model
NL10276BC30-33
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
15.0 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 80 °C
Operating Temp.
0 ~ 70 °C
RoHS

Vibration
1.2G (11.76 m/s²)
Typical Features :

​



NEC NL10276BC30-33 Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
307.4(H) × 231.3(V)
Outline Dim.(mm)
326.5(H) × 253.5(V)
Depth(mm)
11.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
0.97/1.05Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



NEC NL10276BC30-33 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
4/14 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.10/1.30 (Typ./Max.)(5 points)



NEC NL10276BC30-33 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
800mA (Max.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF14H-20P-1.25H
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010G



FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
