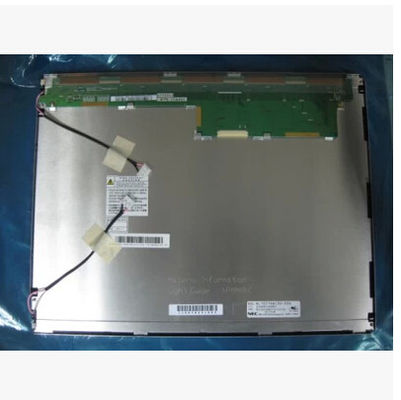

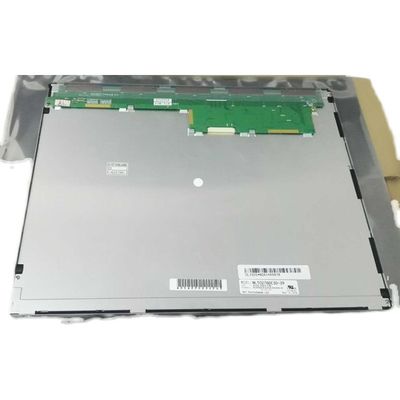

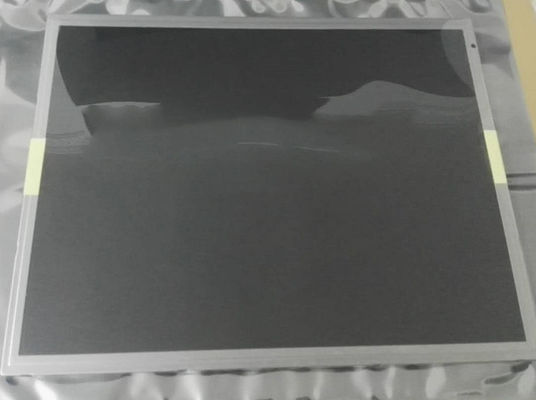

NL10276BC30-18L NLT 15INCH 270CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPL

Large Image : NL10276BC30-18L NLT 15INCH 270CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPL

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL10276BC30-18L

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	50USD
Packaging Details:	STANDARD PACKING
Delivery Time:	2-3 DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	500PCS

Contact Now

NL10276BC30-18L NLT 15INCH 270CD/M2 LCM 1024×768 1024×768RGB CCFL LVDS Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPL

Description

MODEL NUMBER:	NL10276BC30-18L	BRAND:	NEC
SIZE:	15INCH	RESOLUTION:	1024×768RGB
BRIGHTNESS:	270CD/M2	Lamp Type:	CCFL
TEMPERATURE RANGE:	Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
High Light:	NEC TFT Display 40% NTSC , XGA 85PPI NEC TFT Display

NEC NL10276BC30-18L Application Details

Basic Detail :	Manufacturer Model Name NL10276BC30-18L Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 15.0 inch Designed For
Maximum Ratings :	OP Temperature -10 ~ 70 °C ST Temperature -20 ~ 80 °C RoHS - Vibration Level 1.2G (11.76 m/s²)
Features :

NEC NL10276BC30-18L Optical Details

Basic Detail :	Luminance 270 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 4/14 (Typ.)(Tr/Td) ms Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Variation 1.10/1.30 (Typ./Max.)(5 points)
1931 Color Gamut :	NTSC Ratio 40% sRGB 56% coverage Adobe RGB 42% coverage DCI-P3 42% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

NEC NL10276BC30-18L Mechanical Details

Pixel Features :	Number of Pixel 1024(RGB)×768, XGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size :	Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm Bezel Opening 307.4(W)×231.3(H) mm Overall Depth 17.0 (Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Side mounting holes (6-M3) on left, right bezel
Other Detail :	Mass 1.30/1.43Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)

NEC NL10276BC30-18L Interface Detail

Signal Electrical :	Input Current 530/900mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption - Signal Interface LVDS (1 ch, 8-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-010G

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
